| Place of Origin: | Hunan, China (Mainland) |
|---|---|
| Brand Name: | SHENGANG Iron Separator |
| Certification: | ISO9001:2008 |
| Model Number: | RCDY-14 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | standard export package(Rectangular Magnetic Separator) |
| Supply Ability: | 70 Piece/Pieces per Month Rectangular Magnetic Separator |
| Condition: | New | Type: | Magnetic Separator, Electromagnet Type |
|---|---|---|---|
| Production Capacity: | Depend On Customer Actual Work Situation | Voltage: | DC-110V, DC-110V |
| Power(W): | 7kw | Dimension(L*W*H): | 1500*1100*1700mm |
| Weight: | 4600kg, 4600kg | Product Name: | Rectangular Magnetic Separator With Manual Clean |
| Color: | Red | Power: | 7kw |
| Duty Cycle: | TD-100% | Belt Width: | 1400mm |
| Standard Erection Height: | 380mm | Application: | To Remove Magnetic Tramp Iron From Rare Thick Material Bed And Corns |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai/Shenzhen/Guangzhou | ||
| High Light: | permanent magnet alternator,magnetic lifting tool |
||
Rectangular Magnetic Separator with Manual Clean
--Manual Discharge Rectangular Type RCDY Series
Brief Introduction:
RCDY Series is designed for long term operation shift provided with adjustable hook in its suspending system to adjust erection and installation height conveniently. It produces almost the same magnetic field along its width direction( in size B).
Application:
It is suitable for removing the ferromagnetic materials from thinner bed and lighter pile proportion of the materials as grain, wood shaving, biogases, glass scraps, shear raw materials, chemical material, etc.
Features:
Technical Data :
model | International Standard model | Standard Erection T(mm) | Conveyer belt width (mm) | Overall dimension (mm) | Rated voltage (v) | Cold state Consumption Power (kw) | Weight (kg) | Corollary control panel (for single separator) | ||
length A | Width B | height H | ||||||||
MC23-5035L | RCDY-4 | 180 | 400 | 500 | 350 | 880 | 110 | 1.02 | 268 | SSTM-1.5D-D |
MC23-7045L | RCDY-6 | 200 | 600 | 700 | 450 | 1000 | 110 | 1.88 | 508 | SSTM-3.1 D-D |
MC23-9060L | RCDY-8 | 220 | 800 | 900 | 600 | 1100 | 110 | 3.1 | 1150 | SSTM-3.1 D-D |
MC23-11075L | RCDY-10 | 260 | 1000 | 1100 | 750 | 1300 | 220 | 4.3 | 2050 | SSTM-6.2 D-D |
MC23-130140L | RCDY-12 | 360 | 1200 | 1300 | 1400 | 1500 | 220 | 6.8 | 4200 | SSTM-9.3 D-D |
MC23-150110L | RCDY-14 | 380 | 1400 | 1500 | 1100 | 1700 | 220 | 7 | 4600 | SSTM-9.3 D-D |
Overall Dimension Drawing:

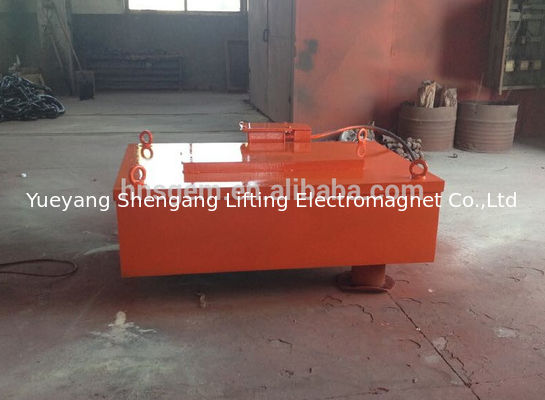

Product Photo:
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :
1.what kind of material need to process separation?
2.does it work with belt? if yes, how about the belt width? belt speed?
3.how about the handling capacity you require? and the separation material size?
4.do you need self-discharging type or manual discharge type?
5.rectangular shape or round shape? permanent magnet type or electromagnet type?
