|Place of Origin:||Hunan, China (Mainland)|
|Certification:||Quality under ISO control system|
|Minimum Order Quantity:||1 Set/Sets|
|Packaging Details:||standard export package(River Sand Magnetic Separator)|
|Supply Ability:||80 Set/Sets per Month|
|Weight:||600KG, 600kg||Product Name:||River Sand Magnetic Separator|
|Drum Speed:||45r/min||Capacity:||8-15 T/h & 24m3/h|
|Drum Size:||600(dia.)*900mm(length)||Magnetic Intensity:||1700GS|
|Particle Size:||0-0.5mm||Application:||To Seperation For Iron Ore,fly Ash Of Iron Power Plant Etc.|
|Warranty:||12months||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
magnetic separation equipment,
magnetic coolant separator

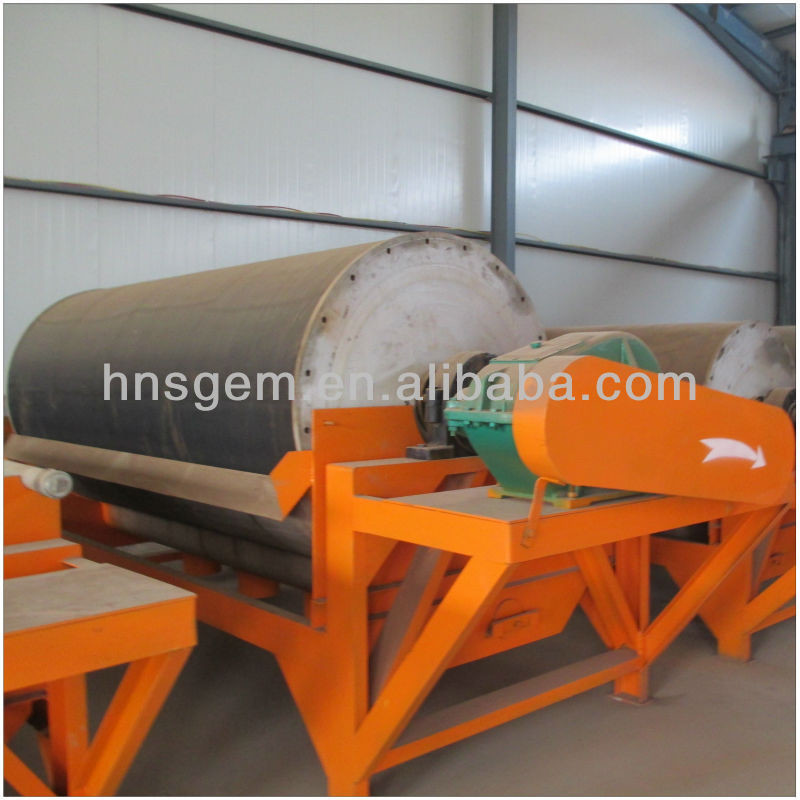

River Sand Magnetic Separator
Magnetic Separator for Mining CTS/CTN/CTB Series
Different Gauss can be expected at the drum surface.
Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.
Working principle of Iron Ore Equipment:
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
Rotating Speed r/min
Particle Size mm
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :
--what kind of material need to process separation?
--does it work with belt? if yes, how about the belt width? belt speed?
--how about the handling capacity you require? (T/h, or m3/h or per day)?
--for wet separation or dry separation ?
--how many GS(magnetic field intensity) you require?
Standard Export Package:
(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)
