|Place of Origin:||Hunan, China (Mainland)|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||standard export package(Suspension Permanent Magnetic Iron Separators)|
|Supply Ability:||50 Piece/Pieces per Month Suspension Permanent Magnetic Iron Separators|
|Features:||Small Insize,light Weight And Convenient Installation||Condition:||New|
|Type:||Magnetic Separator||Production Capacity:||90% Recovery Rate|
|Dimension(L*W*H):||Customer Request||Weight:||600kg, 600kg|
|Product Name:||Suspension Permanent Magnetic Iron Separators||Color:||Red|
|Belt Width:||500mm||Standard Erection Height:||160mm|
|Material:||Nd-Fe-B Magnetic Source Materials||Remove Operation:||By Manual|
|Overall Dimension:||1020*880*290mm||Application:||Applied For Power Industry,metallurgical Industry,etc.|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Warranty:||12 Months|
cross belt magnetic separator,
magnetic roll separator
Suspension Permanent Magnetic Iron Separators
RCYB series is suspended over conveyor belt.It is suitable for continuous-duty occasions and remove 0.1-30kg of ferromagnetic material which mixed in the raw material. This equipment has a high magnetic field intensity, no energy consumption and a long service life. It is easy to install and use without maintenance. This equipment is widely used for the iron removal from non-magnetic materials on belt conveyors, vibrating conveyors, vibrating feeders, chutes, etc.
-- Long term working
-- Suspending with hooks (height is adjustable)
-- Equal magnetic field in the direction of width
-- Clean by hand
Technical Data and Overall Dimension Drawing:

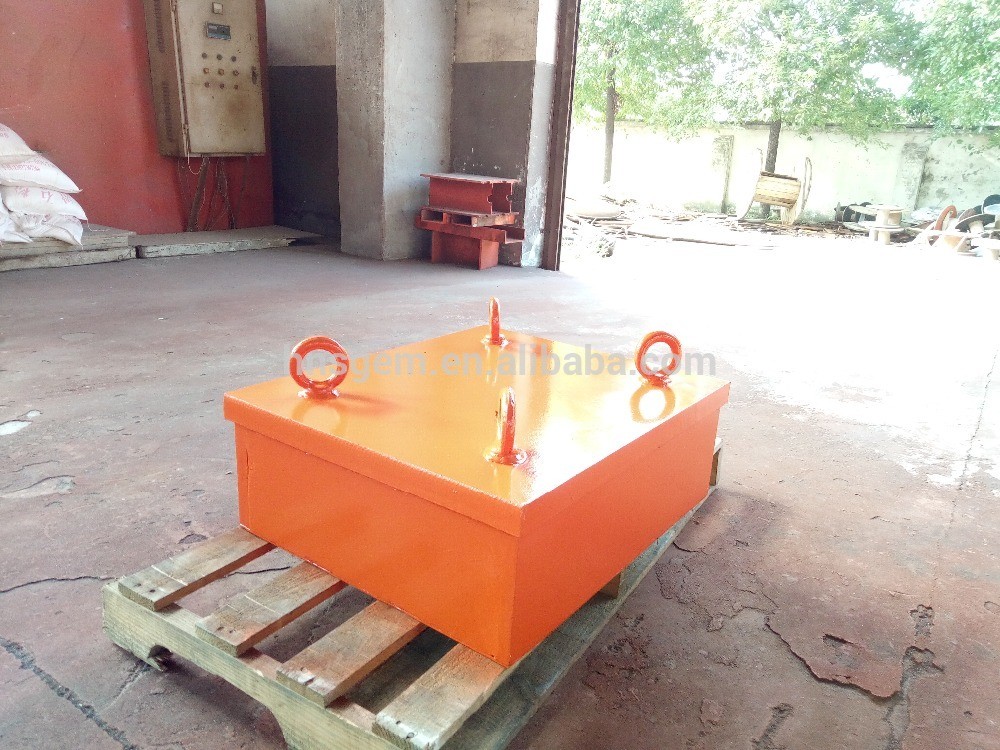

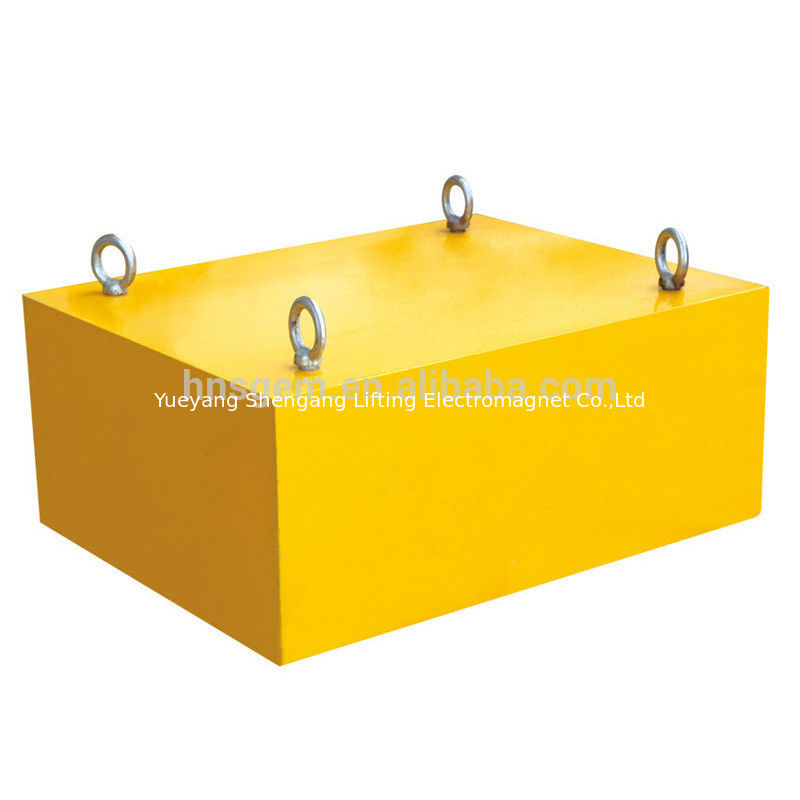

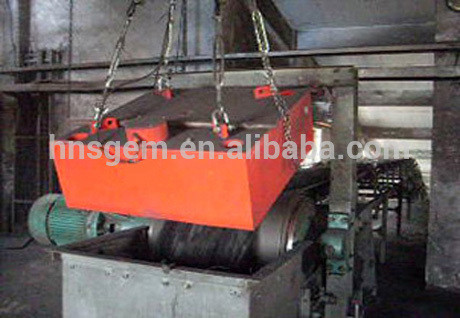

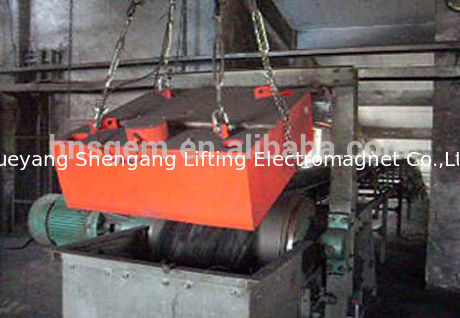

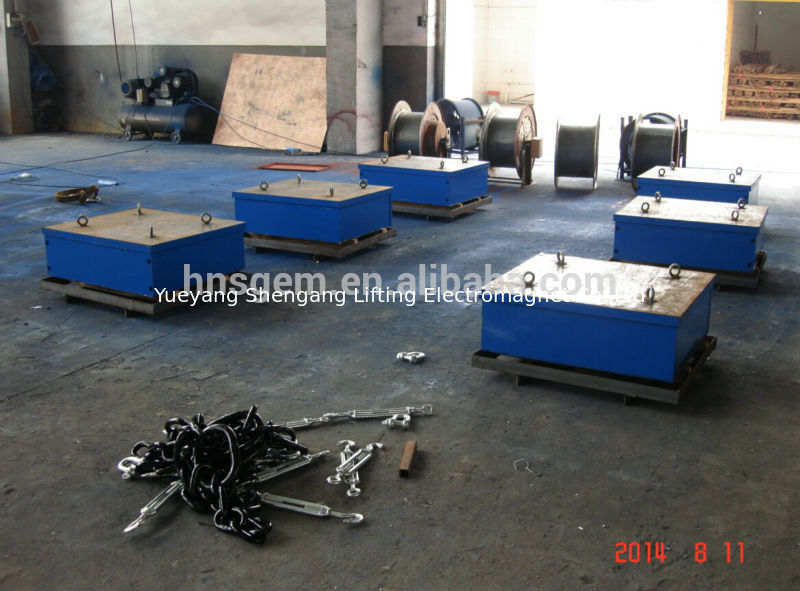

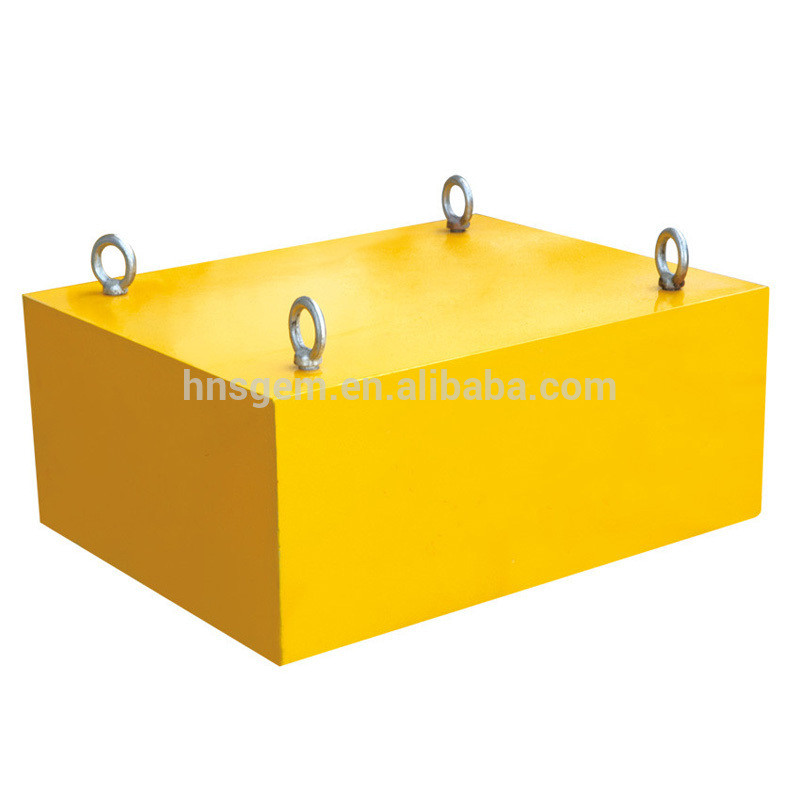

Magnetic Separator Physical Photo:
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :
1.what kind of material need to process separation?
2.does it work with belt? if yes, how about the belt width? belt speed?
3.how about the handling capacity you require? and the separation material size?
4.do you need self-discharging type or manual discharge type?
5.rectangular shape or round shape? permanent magnet type or electromagnet type?
