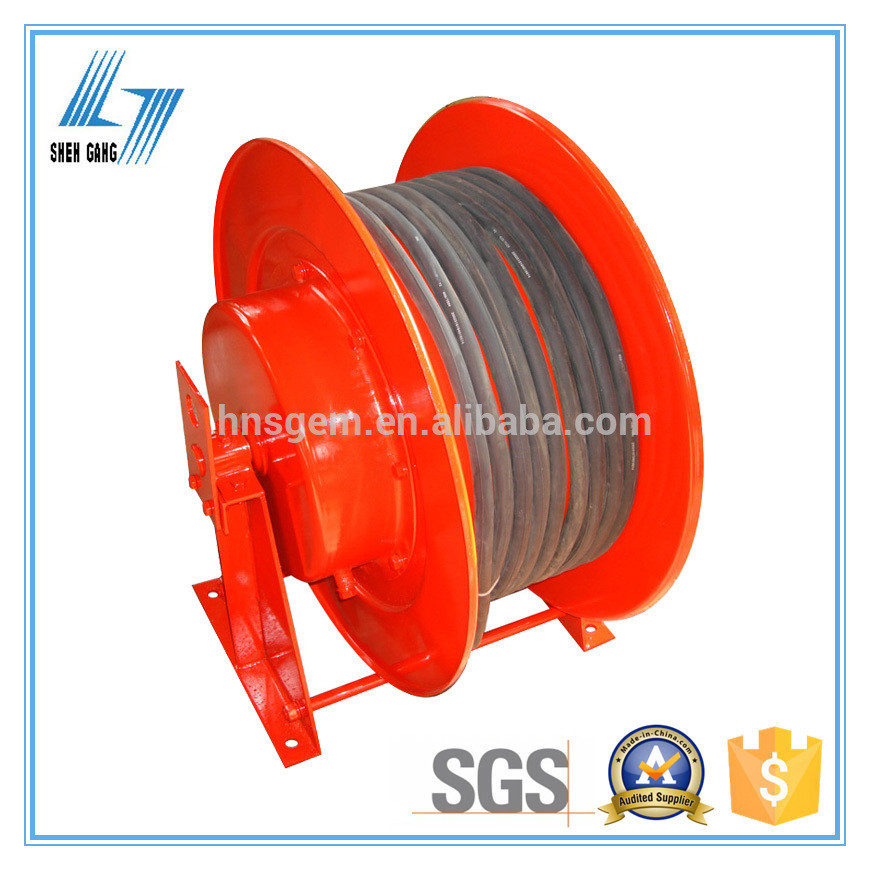

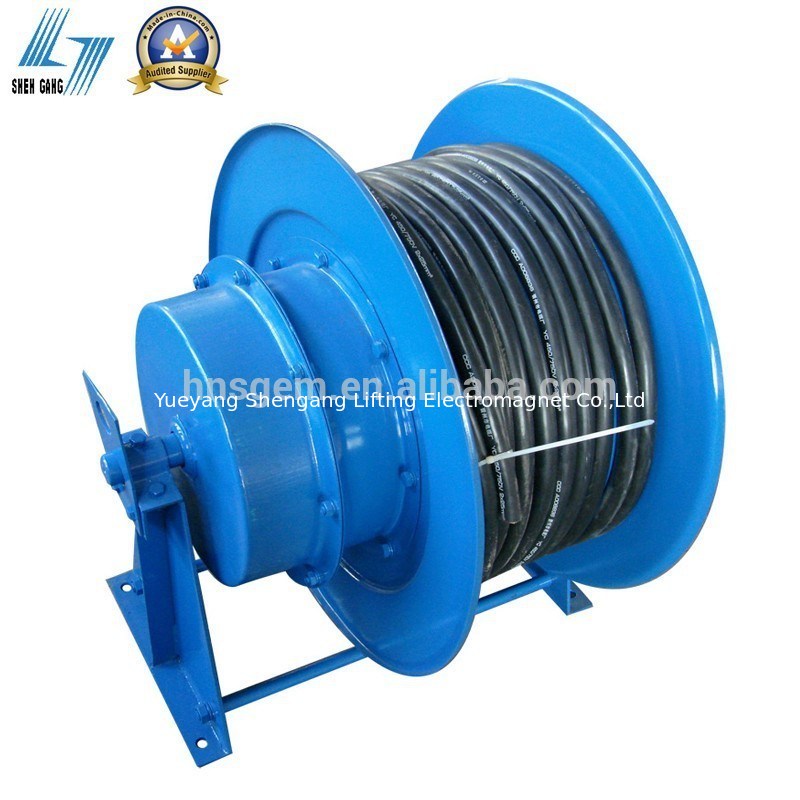

Steel Reel Cable Drum

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JTA170-15-2
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Steel Reel Cable Drum)
Supply Ability: 100 Piece/Pieces per Month Cable Reel Drum
Usage: Winding Product Name: Steel Reel Cable Drum
Series: JTA Type Type: Slip Ring Built-in Installed
Current: 132A Color: Blue
Cable Length: 15m Weight: 120kg
Installation Patterns: Vertical Coiling Phase Number: 2
Application: Elastic Power Supply Cable Reel Port: Shanghai/Shenzhen/Guangzhou
High Light:

automatic hose reel

,

self winding hose reel

Steel Reel Cable Drum



-- JTA Series Spring Retractable Cable Reel

Product Description

 Brief Introduction:



We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.



Features:

  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.



Benifits:

  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:



SeriesitemABCD1D2dEFWWeight(kg)
15m,20m
Series
13003604005007001544060025095
2490650300100
3560720250115
4610770300120
5720880300150



Cable ModelEnabled Current 15m Seriesitem20m Seriesitem25m Seriesitem
Core No.*Cross SectionContinuously1 min on/off
YC2*105875JTA75-15-21JTA75-20-21JTA75-25-22
JTB75-15-2JTB75-20-2JTB75-25-2
YC2*1677100JTA100-15-21JTA100-20-23JTA100-25-22
JTB100-15-2JTB100-20-2JTB100-25-2
YC2*25106135JTA135-15-24JTA135-20-24JTA135-25-23
JTB135-15-2JTB135-20-2JTB135-25-2
YC2*35132170JTA170-15-24JTA170-20-25JTA170-25-24
JTB170-15-2JTB170-20-2JTB170-25-2



 Overall Dimension Drawing:

 Steel Reel Cable Drum 0



Physical Product Photo :



 Steel Reel Cable Drum 1     Steel Reel Cable Drum 2



Steel Reel Cable Drum 3     Steel Reel Cable Drum 4



Steel Reel Cable Drum 5



FAQ

 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number and cross section, coil length of cable, electric current)?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?
