Suspended Magnetic Separator for Conveyor Belts

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001
Model Number: RCDD-5
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Suspended Magnetic Separator for Conveyor Belt)
Supply Ability: 80 Piece/Pieces per Month magnetic separator for conveyor belts
Condition: New Type: Magnetic Separator, Electromagnet Type
Production Capacity: Based On Customer Work Condition Voltage: DC-110V, DC-110V
Power(W): 1.4kw Dimension(L*W*H): 2020*1040*775mm
Weight: 1160kg, 1160kg Product Name: Suspended Magnetic Separator For Conveyor Belts
Color: Red Belt Width: 500mm
Power: 1.4kw Duty Cycle: TD-100%
Standard Erection Height: 170mm Application: Magnet Separator To Remove Magnetic Tramp Iron From Material Bed
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas
Port: Shanghai/Shenzhen/Guangzhou
High Light:

permanent magnet alternator

,

magnetic lifting tool

Suspended Magnetic Separator for Conveyor Belts



--- Series RCDD



Product Description

 Brief Introduction :

RCDD series is self-unloading type magnet separator in long-term system. It is added platform, iron removing belt and etc, which is suspended over the belt conveyer. Through the conveyance of the iron unloading belt, the separator will auto discarge the iron magnetic articles which are absorbed by the magnet into the iron collecting box. Thus removing the iron magnetic articles is gained. Which is the one of the most common used types of separator.



Application:



Most being suitable for removing iron magnetic articles from thicker bed and granularity of the materials as ores, coal, hard coke, limestone, spells, etc.



Features:



Improving and purifying non-magnetic materials; Recycling Iron

  • made of aluminum coil and iron core,etc.
  • high gauss
  • self-discharing type

Technical Data:



International

Standard

model

Standard

Erection T(mm)

width of Conveyer belt(mm)

Rated voltage

(v)

Cold

state

Consumption

Power(kw)

Weight

(kg)

Overall dimension (mm)

Driving

Motor

capacity

(kw)

Corollary control

panel

ABCDEF
RCDD-51605001101.0310742300133011009145005201.5SSTM-1.5D1-D
RCDD-61705001101.4116024001400115010686505201.5
RCDD-62206501101.8133024001250125011206505551.5SSTM-3.1D1-D
RCDD-82508001102.6147027501600136012708005802.2
RCDD-82508001102.9200027501770146514809006252.2
RCDD-1026010001102.9200029001770146514809006252.2SSTM6.2D1-D
RCDD-1231012002204.22700320020001590168010006254
RCDD-1641016002208.26020380026201850199014007254SSTQ-12D1-D



Overall Dimension Drawing :

Suspended Magnetic Separator for Conveyor Belts 0



Suspended Magnetic Separator for Conveyor Belts 1Suspended Magnetic Separator for Conveyor Belts 2

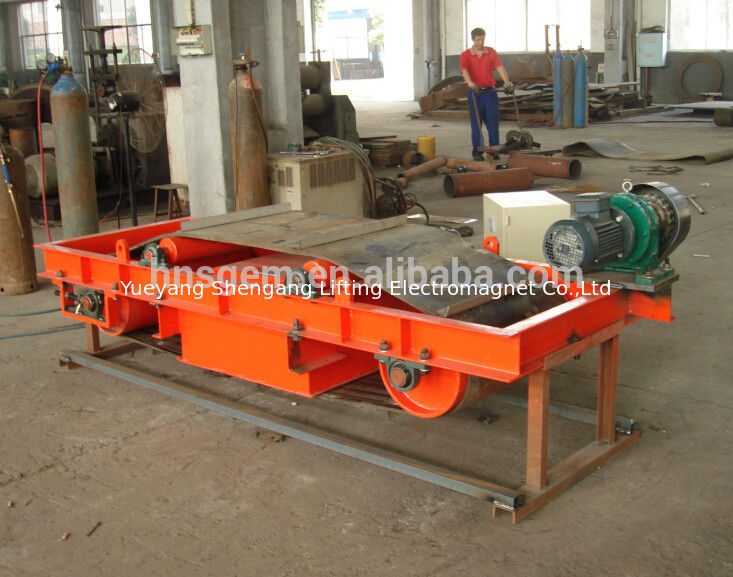

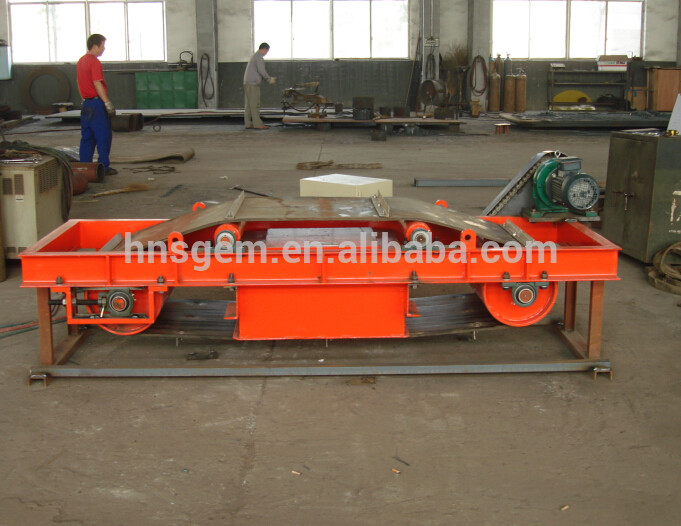

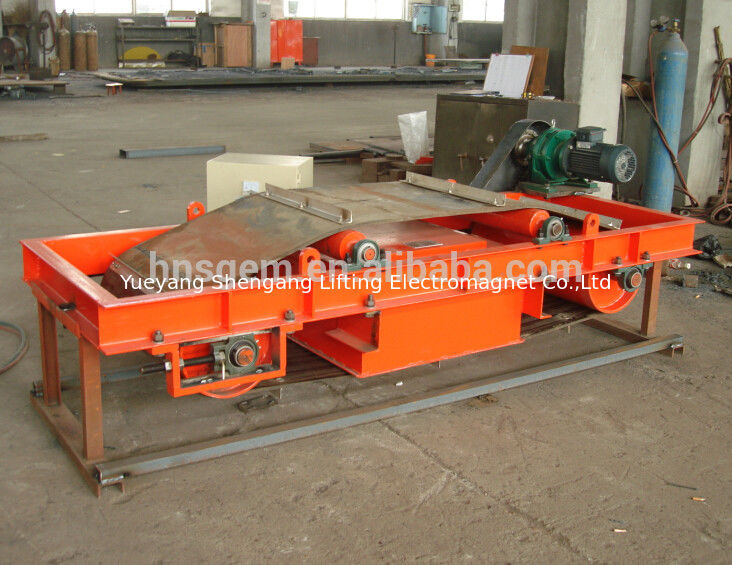

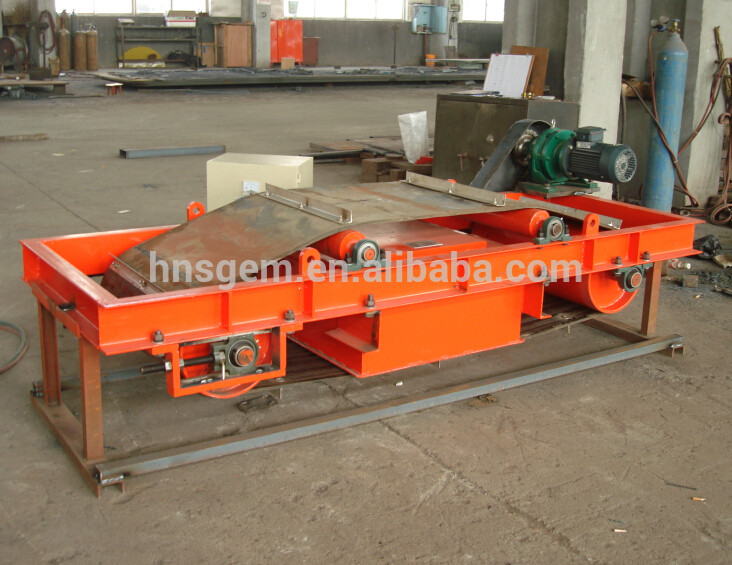

Physical Product Photo:



Suspended Magnetic Separator for Conveyor Belts 3



Suspended Magnetic Separator for Conveyor Belts 4



FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.what kind of material need to process separation?



2.does it work with belt? if yes, how about the belt width? belt speed?



3.how about the handling capacity you require? and the separation material size?



4.do you need self-discharging type or manual discharge type?



5.rectangular shape or round shapepermanent magnet type or electromagnet type?
