|Production Capacity:||90-170 T/h & 270m3/h||Voltage:||380V|
|Weight:||8000kg, 8000kg||Product Name:||Tin Ore Magnetic Separator|
|Drum Speed:||14r/min||Capacity:||90-170 T/h & 270m3/h|
|Drum Size:||1500(dia.)*3000mm(length)||Magnetic Intensity:||3000GS|
|Particle Size:||0-6mm||Application:||To Seperation For Iron Ore,fly Ash Of Iron Power Plant Etc.|
|Warranty:||12 Months||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
magnetic separation equipment,
magnetic coolant separator

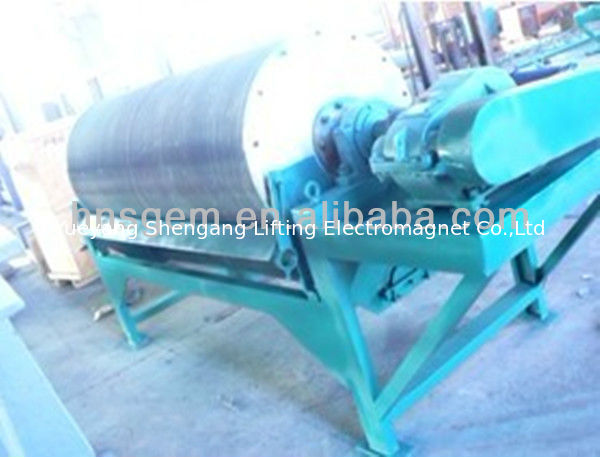

Tin Ore Magnetic Separator
ShenGang Copper Ore Magnetic Separator CTN Series
Different Gauss can be expected at the drum surface.
Suitable for iron ore, fly ash of iron power plant separator with large capacity, high recovery rate, especially for iron ore concentrate select.
Working principle of Iron Ore Equipment:
When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.
Rotating Speed r/min
Particle Size mm
Standard Export Package:
(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)
