150m Torque Motorized Cable Reel Long Distanc For Gantry Crane

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: SGS,CE,ISO,BV
Model Number: JDD140-150-4
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(150m torque electric motor cable reel)
Delivery Time: 10 days after confirmed the order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Piece/Pieces per Month 150m torque electric motor cable reel
Contact Now



JDD Series Moment Motor Type Cable Reel



Brief Introduction:



Motor-drivencable reel is designed for coiling or releasing the large specification and long distance power supply cable, which can be in synchronous operation with the mobile electrical apparatus to coil or release the cables. In view of its power patterns which is divided into torque motor driven typeand three phase asynchronous motor driven type. There are so many motor-driven reel models available which can coil or release the power supply cablesunder 500V and high voltage cables for 6kv and 10kv.

1. For different power cable, such as 3x120+1x35, 3x95+1x35 etc
2. Its driven by the electric motor
3. The cable reel is usually fixed on the mobile machine and works horizontally.
4. Additional turnover anchor will be provided if the power is feed centrally
5. Additional control cabinet is also equipped.



 Features:

Technical Data:



Cable Model Enable Current(A) (40 centigrade) 50m series Item No. 100m series Item No. 150m series Item No. 200m series Item No.
Core numbers ×cross section(mm²) continuously 1 min. on;1 min. Off
YC3×25+1×10 90 120     JDD90-100-4 3 JDD90-150-4 4 JDD90-200-4 4
YC3×35+1×10 110 150     JDD110-100-4 3 JDD110-150-4 4 JDD110-200-4 4
YC3×50+1×16 140 180 JDD140-50-4 1 JDD140-100-4 3 JDD140-150-4 4 JDD140-200-4 5
YC3×70+1×25 180 220 JDD180-50-4 1 JDD180-100-4 3 JDD180-150-4 4 JDD180-200-4 5
YC3×95+1×35 210 270 JDD210-50-4 2 JDD210-100-4 4 JDD210-150-4 5 JDD210-200-4 6
YC3×120+1×35 250 320 JDD250-50-4 2 JDD250-100-4 4 JDD250-150-4 5 JDD250-200-4 6
Overall dimension table(mm)
Item No. A B C D1 D2 d E F H I K W Mass (kg)
1 665 575 720 1000 1800 26 750 1450 900 80 60 180 830
2 665 575 720 1000 2000 26 750 1450 900 80 60 180 840
3 665 575 720 1000 2200 26 750 1450 900 80 60 180 860
4 665 575 720 1200 2500 26 750 1450 900 80 60 220 930
5 665 575 720 1300 2800 26 750 1450 900 80 60 220 980
6 665 575 720 1500 3200 26 750 1450 900 80 60 220 1000

Overall Dimension Drawing:



150m Torque Motorized Cable Reel Long Distanc For Gantry Crane

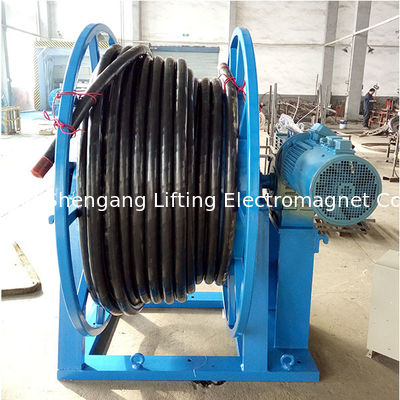

Physical Product Photo:

150m Torque Motorized Cable Reel Long Distanc For Gantry Crane

Cable Reel Application:



150m Torque Motorized Cable Reel Long Distanc For Gantry Crane

Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..



150m Torque Motorized Cable Reel Long Distanc For Gantry Crane

FAQ

In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number * cross section, coil length of cable, electric current, work voltage?



3. What kind of working site will the cable reel be applied with?



4. What kind of installation patterns you prefer: Vertical coiling or Horizontal coiling?



5. To use flat cable or round cable?



Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter with more than 15 years export experience. Very sincerely looking for long-term win-win business here!



Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc.



Our factory also pass the SGS audit per year with certification issued.



We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!



We also have our own brand as "SHENGANG"

150m Torque Motorized Cable Reel Long Distanc For Gantry Crane

150m Torque Motorized Cable Reel Long Distanc For Gantry Crane

(fixed iron frame with five-plywoodboard packing to keep crane cable reels with a safety and long-distance transportation and no need fumigation when clear custom )
