Place of Origin: | Hunan, China (Mainland) |
---|---|
Brand Name: | SHENGANG MAGNETIC LIFTER |
Certification: | CE,ISO |
Model Number: | YC2-2 |
Minimum Order Quantity: | 1 Piece/Pieces |
Price: | Negotiable |
Packaging Details: | standard export package(Automatic Permanent 1 Ton Lifting Magnet) |
Supply Ability: | 80 Piece/Pieces per Month automatic lifting magnet |
Features: | Auto Cycle To Hold And Release The Materials | Condition: | New |
---|---|---|---|
Dimension(L*W*H): | 1640*800*260mm | Product Name: | Automatic Permanent 1 Ton Lifting Magnet With Electricity Saving |
Color: | Yellow | Type: | Electromagnet Circuit Changeover Type |
Lifting Capacity: | 2000kg | Weight: | 250kg |
Application: | Used To Lift And Transfer The Short And Thick Steel Plate | Overall Dimension: | 1640*800*260mm |
Application 2: | Industrial Magnet | Industrial: | Ship-making,engineering Mechanical, Automobile,etc. |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 12 Months |
Port: | Shanghai/Shenzhen/Guangzhou | ||
High Light: | magnetic plate lifter,heavy lifting magnets |
Automatic Lifting Magnet
--YC2 Series
Brief Introduction:
It is made of high-energy magnetic material adopting scientific magnet circuit theory featuring huge attraction force, compact, light dead-weight and convenient and safe for operation. It is an ideal energy-economizing and more convenient lifter than the electromagnet lifter which must be equipped with complicated link-up units and power supply backup.
Permanent-Magnetic Lifter Series YC2-1 Application:
It is used to lift and transfer the normal temperature steel plates in ship-making industry, engineering mechanical industry, automobile industry and so on. There have three series of YX and YC according to their material unloading modes.
Series YX2,YC2 for lifting short and thick steel plate using ratchet wheel unit to hold and release the materials in auto cycle. While YX3 for manually handling long and thin steel plates in combined units; the level type structure can guarantee the unit to be operated in synchronism.
YC-2 Permanent Magnetic Lifter Main Technical Data:
Model | YC2-1 | YC2-2 | YC2-3 | YC2-5 | YC2-10 | YC2-20 | YC2-30 | YC2-50 | |
Overall dimension mm | A | 550 | 680 | 870 | 970 | 1440 | 1640 | 1950 | 2410 |
B | 470 | 540 | 580 | 800 | 800 | 800 | 1060 | 1220 | |
h | 105 | 130 | 135 | 130 | 155 | 260 | 310 | 310 | |
H | 518 | 815 | 1045 | 1020 | 1440 | 1300 | 1600 | 1900 | |
Mass kg | 130 | 250 | 390 | 575 | 1197 | 2210 | 3810 | 5470 | |
Lifting capacity kg | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | 30000 | 50000 |
YC-2 Permanent Magnetic Lifter Overall Dimension:

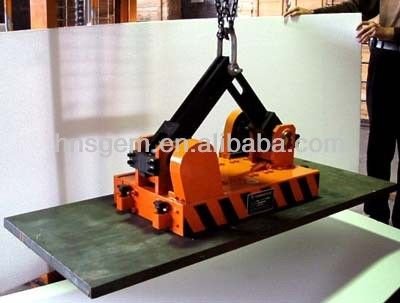

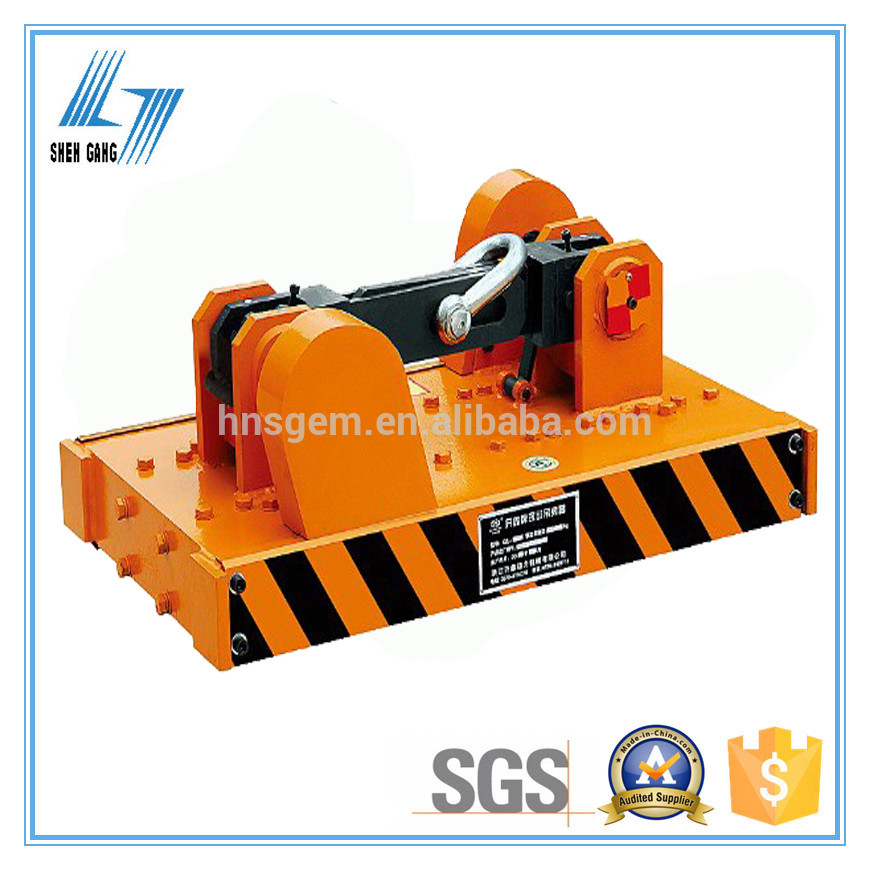

Reference Product Photo:
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :
1. What kind of the materials you want to lift? Steel plate( length*width*thickness)?
2. What' s the lifting capacity you expect per time?
