Constant Steel Plate Lifting Magnets Quick Accurate Reasonable Structure

Basic Information
Place of Origin: CHINA
Brand Name: SHENGANG MAGNET
Certification: CE,ISO,SGS,BV
Model Number: MW84-10535L/1
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 12 workdays after signed the contract
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 80pcs per month
Color: Red Shape: Rectangular
Rated Voltage: DC220V Duty Cycle: 60%
Electric Current: 10.5A Cold-State Power: 2.3KW
Weight: 330KG Dimension(L*W): 1050*350mm
Steel Plate Thickness: 6-32mm Steel Plate Width: 1500-4000mm
Coil Type: Aluminum Or Copper Application: Handle Medium-Thickness Steel Plate
Complete Equipment: Electromagnet,Cable Reel,Control Panel
High Light:

magnetic plate lifter

,

heavy lifting magnets

Industrial Rectangular type Electric Plate Lifting Magnet for Gantry Crane



Introduction:

Specially designed for lifting and transporting steel plate of medium-thickness. Considering possible bending and deforming may affect safe transportation when lifting long steel plate, please use the combination of several electromagnet. As to medium-thickness steel plate(6mm~32mm), the space length of electromagnets is 3~4m, the space length of extension parts of both ends is half of the space length.



Features:


According to lifting pieces, the series is divided into type 350 and type 400

** Type 350 is suitable for medium-thickness plate factory, ship building factory, and machinery manufacturing factory, it adopts magnet regulating control method, and can lift one piece or certain pieces of steel plate
** Type 400 is suitable for transporting as many as possible pieces at a time. According to customer's requirement, we also can design and manufacture high temperature type products which used for lifting and transporting steel plate below 700° C.



Technical data:



Constant Steel Plate Lifting Magnets Quick Accurate Reasonable Structure 0

Constant Steel Plate Lifting Magnets Quick Accurate Reasonable Structure 1

Complete set of equipment:
· Lifting electromagnet;
· Spring type cable reel with Cable;
· Rectifier control cabinet with Battery back-up;
· Cable connector.



Constant Steel Plate Lifting Magnets Quick Accurate Reasonable Structure 2

Product Application:

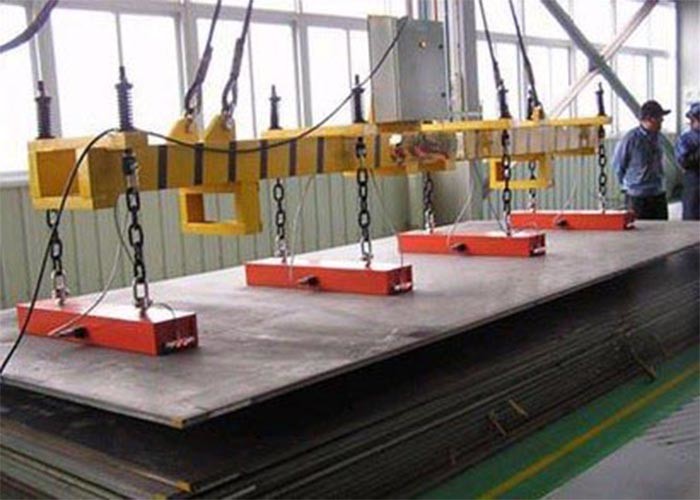

Constant Steel Plate Lifting Magnets Quick Accurate Reasonable Structure 3

Our Best Advantages:



1)Credited by CE,SGS,BV and ISO9001 certificate,with 29490m² total size of factory.
2)Adopt totally sealing structure with good property of moisture-proofing.
3)Simple and convenient installation, operation and maintenance.
4)optimized design ,reasonable structure, light dead-weight, strong lifting capacity,easy and safe operation



FAQ:



Q:Why customers choose us?
A:We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.



Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.



Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.



About Enquiry:

To help you get the best electro lifting magnet for your application, we should have the following information:

--For steel plate:
1.What about the plate size: length, width and thickness?
2.How many plates need to be transported for one time?
3.How about the temperature of the plate,normal temperature or high temperature?

--For overhead crane:
1.How about the loading capacity of the crane, single beam or double beam?
2.What is the distance from crane to ground?

--Power supply information: Voltage, DC or AC? Frequency
(More details, please feel free to contact us directly. )



Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.



Factory Tour and Contacts:



Constant Steel Plate Lifting Magnets Quick Accurate Reasonable Structure 4

Quick Response:



We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.



Convenient Transportation:

All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
