Digger Excavator Magnet Attachment Compact With Independent Controllers

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO,CE,SGS,BV
Model Number: MW5-110L/1
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package (Excavator Lifting Magnet Japan )
Delivery Time: 10 workdays after signed the contract
Supply Ability: 80 Piece/Pieces per Month Excavator Lifting Magnet Japan
Shape: Circular Application: Industrial Magnet, Circular Electromagnets Used To Lift Steel Scraps
Product Name: Excavator Lifting Magnet Japan Current: 27.5A
Rated Voltage: 220V Power: 6KW
Lifting Capacity For Steel Scrap: 450/400kg Lifting Capacity For Steel Ball: 6500kg
Lifting Capacity For Cast Iron: 1000/800kg Weight: 1500kg
Port: Any Port In China
High Light:

mini excavator attachments

,

skid steer magnet attachment

Application:



Excavator lifting magnet is used for transporting Iron scraps,Ingots,Pig Iron,Machine Chip,Return scraps,Baling scraps, Various kinds of steel scraps.This magnet is special designed for excavator installation, replace the bucket with magnet, so the excavator could mechanical handle all kinds of steel material.



Features:



--75% or 60% Duty Cycle
--All welded heavy duty construction
--Class H insulation
--Powerful deep magnetic field design
--Aluminum or Copper coil optional



Technical data:



High temperature type(The attached material is below 650 centigrade;Rated voltage DC-220V;Power-on sustaining rate TD-60%)
Model Electric current (A) Cold-state power (kw) lifting capacity (kg) cold/hot state Mass (kg) Overall dimension (mm)
steel ball cast iron steel scrap A B C D E
MW5-70L/2 12.77 2.8 2500 380/200 120/100 520 700 820 160 90 30
MW5-80L/2 16.1 3.54 3000 480/250 150/300 650 800 820 160 90 30
MW5-90L/2 20.5 4.5 4500 600/400 250/200 900 900 1110 200 125 40
MW5-110L/2 27.5 6 6500 1000/800 450/400 1500 1100 1350 220 150 45
MW5-120L/2 33.6 7.4 7500 1300/1000 600/500 1800 1200 1280 220 150 45
MW5-130L/2 40.6 8.9 8500 1400/1100 700/600 2100 1300 1280 250 175 50
MW5-150L/2 51.4 11.3 11000 1900/1500 1100/900 3200 1500 1620 350 210 60
MW5-165L/2 60.6 13.3 12500 2300/1800 1300/1100 3500 1650 1630 370 230 75
MW5-180L/2 95 20.9 14500 2750/2100 1600/1350 4500 1800 1510 370 230 75
MW5-210L/2 104 22.9 21000 3500/2800 2200/1850 7500 2100 1910 400 250 80
MW5-240L/2 118.6 26 26000 4800/3800 2850/2250 9700 2400 2080 450 280 90

Overall dimension and product pictures:

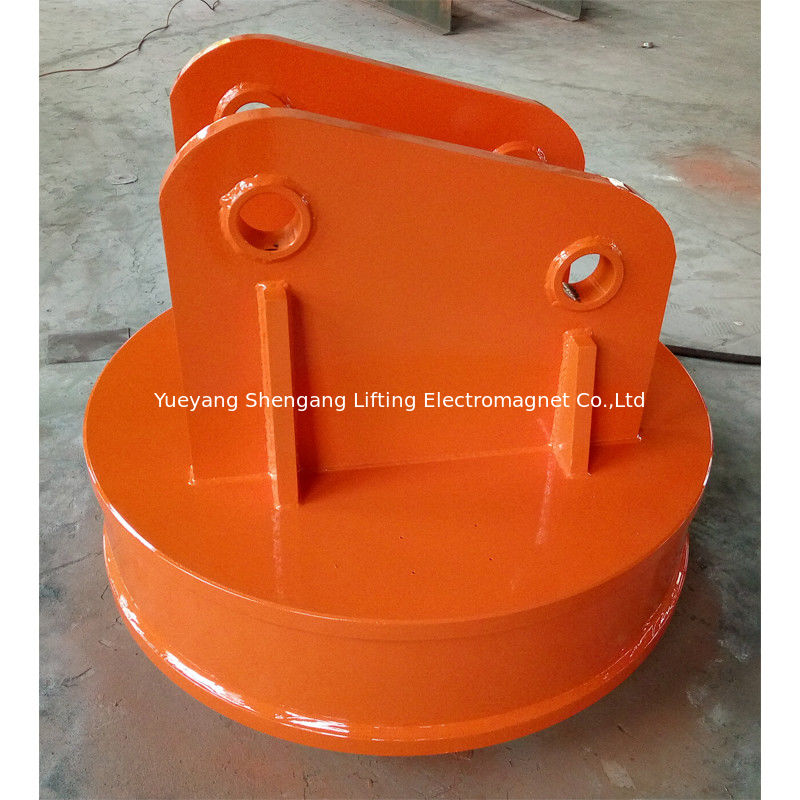

Digger Excavator Magnet Attachment Compact With Independent Controllers 0

Complete set of equipment:


· Lifting electromagnet;
· 15m length Cable;
· Rectifier control cabinet;
· Cable connector / Quick coupling;

· Generator (kindly confirm if you need, hydraulic type or diesel type)

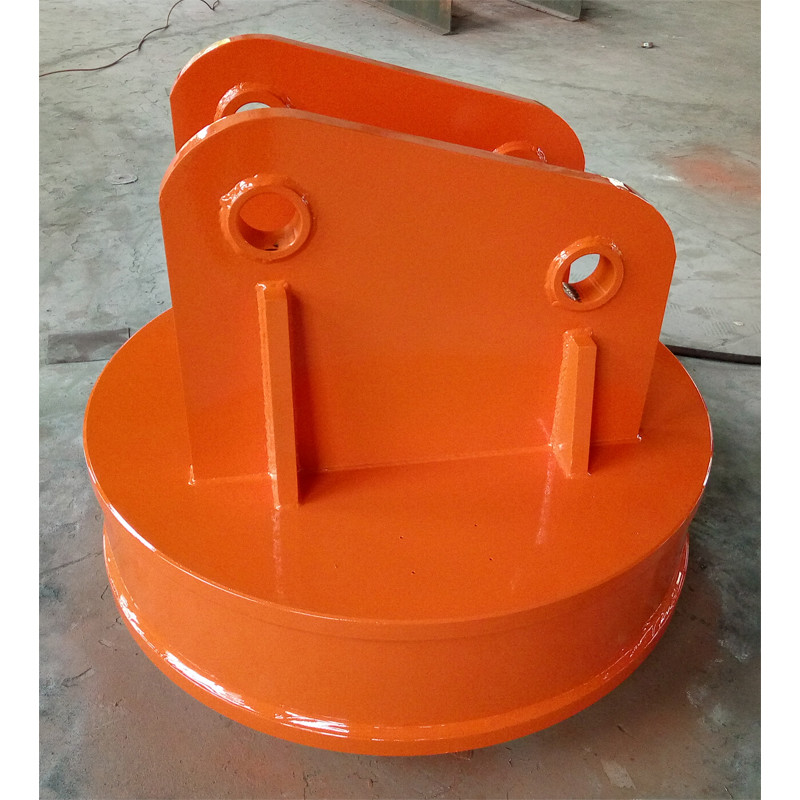

Digger Excavator Magnet Attachment Compact With Independent Controllers 1

Application:

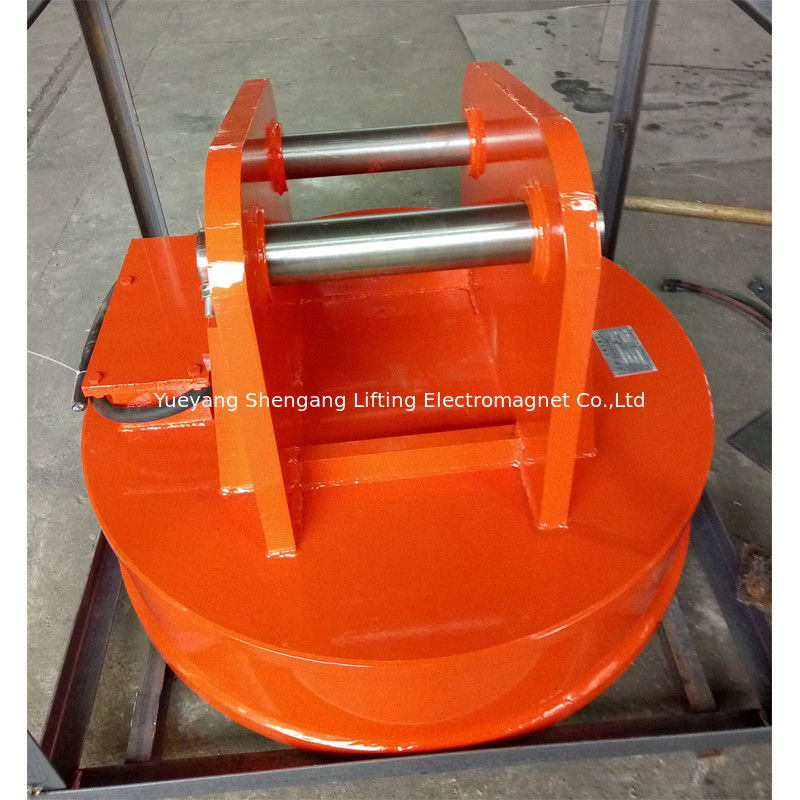

Digger Excavator Magnet Attachment Compact With Independent Controllers 2

Processing flow and Package:


The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.

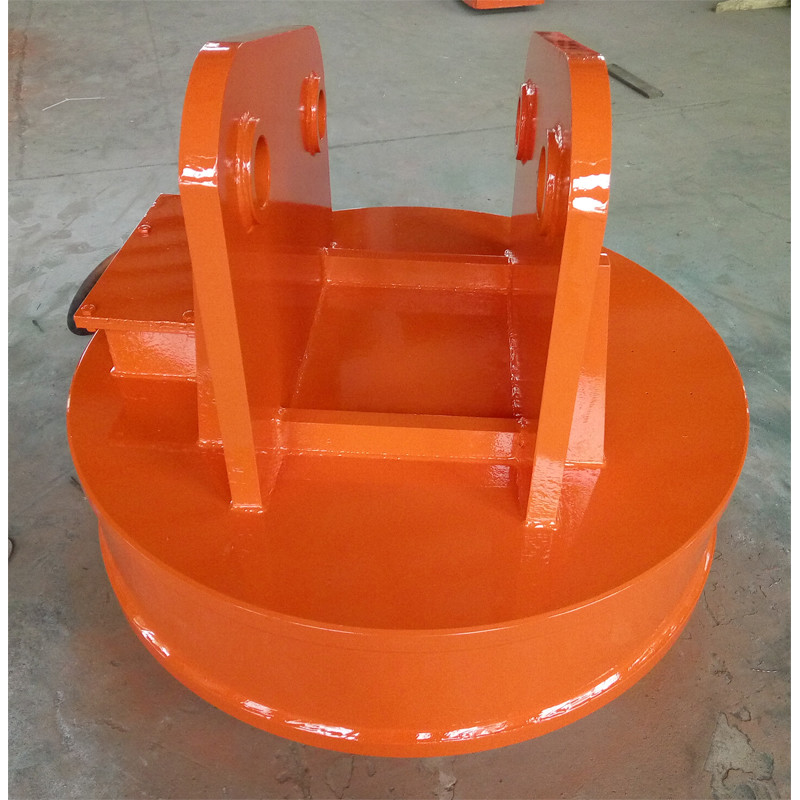

Digger Excavator Magnet Attachment Compact With Independent Controllers 3

Our Best Advantages:



1)Credited by CE,SGS,BV and ISO9001 certificate,with 29490m² total size of factory.
2)Adopt totally sealing structure with good property of moisture-proofing.
3)Simple and convenient installation, operation and maintenance.
4)optimized design ,reasonable structure, light dead-weight, strong lifting capacity,easy and safe operation



FAQ:



Q:Why customers choose us?
A:We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.



Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.



Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.



About Enquiry:


To help you get the best excavator lifting magnet for your application, we should have the following information:


1. What kind of the materials you want to lift? Is it steel scraps?
2. What' s the lifting capacity you expect per time?
3. Kindly provide your power supply information (__V, DC or AC? ___Hz)
4.For the excavator magnet,please tell us
--Do you prefer hook type or lifting chain type magnet?If prefer magnet with hook,please confirm hook size.

--Load capacity and Bucket capacity of your excavator?



Factory Tour:

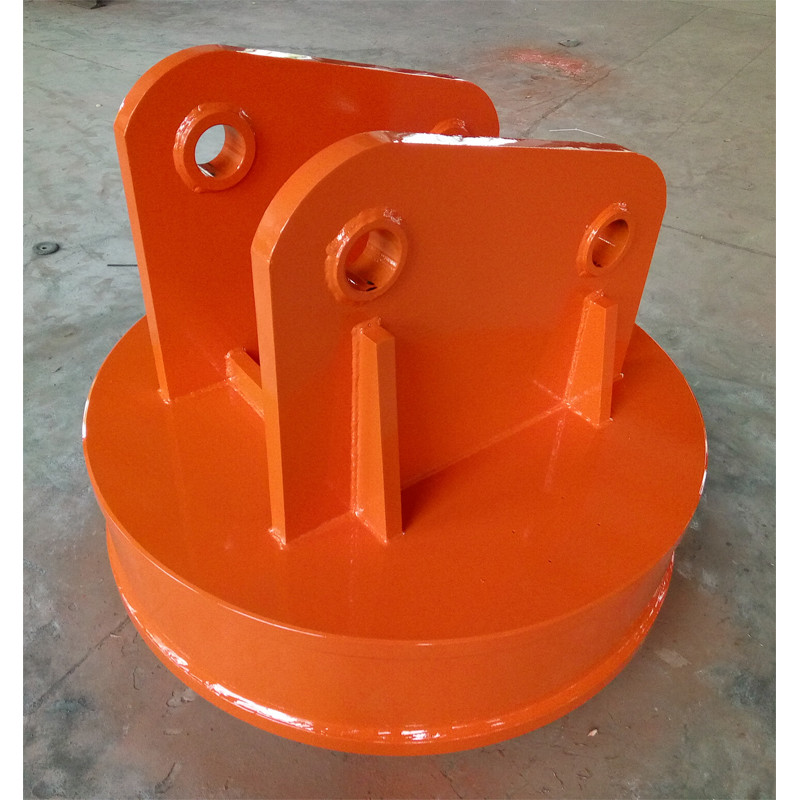

Digger Excavator Magnet Attachment Compact With Independent Controllers 4
