Easy Operation Steel Plate Lifting Magnets , Plate Handling Magnets Device

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: YC1-0.3
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: standard export package (Magnetic Lifting Device)
Supply Ability: 100 Set/Sets per Month
Product Name: Magnetic Lifting Device Color: Yellow
Type: Electromagnet Circuit Changeover Type Rated Lifting Capacity: 300kg
Max.Attraction Force: 900kg Weight: 16kg
Application: Used To Lift And Transfer The Normal Temperature Steel Plates Application 2: Industrial Magnet
Port: Shanghai/Shenzhen/Guangzhou
High Light:

magnetic plate lifter

,

sheet metal lifting device

Magnetic Lifting Device





              Is moving steel plate, rounds and blocks wasting precious time?  Is manual lifting causing back injuries?  Are slow machine set-ups cutting into machine output?



If the answer to any of these questions is "YES", SHENGANG-Lift lifting magnets are for you!



SHENGANG-Lift magnets are the fastest and safest way to transport raw stock and workpieces.



From theLittle SG weighting only 100kg that can safely lift 100kg, with a 3.5X safety factor!



    To the Big SG that lifts up to 2000kg with a 3.5X safety factor!







SHENGNG-LIFT LIFTING MAGNET APPLICATIONS:



Move plate steel, block or round steel and iron material in your shop easily and safely.



Load machines faster.  Load most work pieces to save time and boost production. It's perfect for loading or unloading press molds, plastic molds, machined parts and other ferrous parts and materials.



Fastest and safest way to lift without dangerous slings.



No electricity required. Super-powerful "rare earth" neodymium iron boron magnets require no electricity.  There is no risk in losing lifting force even during power failures.



Pipe Handling Equipment for Lifting 1000kg is used to lift and transfer the normal temperature steel plates in ship-making industry, engineering mechanical industry, automobile industry and so on. There have three series of YX and YC according to their material unloading modes.



SHENGANG LIFTING MAGNET FEATURES :



  • Rated for loads up to 1000KG.

  • Powerful magnet tested to hold 3.5 TIMES the rated load for maximum safety.

  • Eliminates dangerous straps and slings.

  • For fast, safe, efficient machine loading and unloading



SHENGANG PERMANENT LITING MAGNETS MAGNT LIFTER OPERATION:



First center the magnet on the piece to be lifted.  Then simply move the lever to the "ON" position to engage the magnet.  Spring-loaded lock keeps magnet engaged until you release it.



BENEFITS: SAFE MATERIAL HANDLING & INCREASED PRODUCTIVITY



MAXIMUM RATED LOAD



Calculate that the magnet will safely lift your material.  The Maximum Load (ML) is different for plate and round materials and also depends upon stock thickness, carbon content, and surface finish.  Use these formulas and tables to calculate the ML for your material type.



Main Technical Data:



Model     Max.Attraction Force(Kg) Rated Lifting Capacity(Kg) Overall Dimension(mm) Weight(Kg)
A B C D
YC1-0.1 300 100 122 62 70 140 4
YC1-0.3 900 300 180 110 124 270 16
YC1-0.5 1500 500 258 110 124 380 25
YC1-1 3000 1000 263 180 219 412 68
YC1-2 6000 2000 288 220 269 552 150



Overall Dimension Drawing:

Easy Operation Steel Plate Lifting Magnets , Plate Handling Magnets Device 0

Easy Operation Steel Plate Lifting Magnets , Plate Handling Magnets Device 1

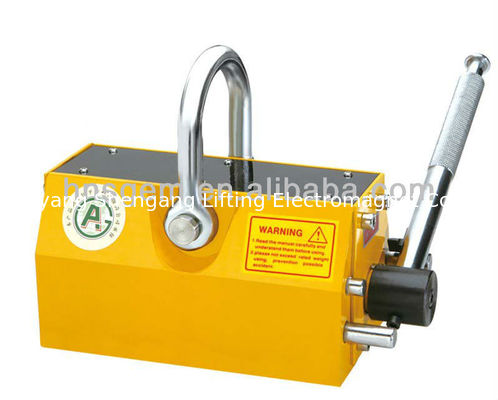

Physical Product Photo:

Easy Operation Steel Plate Lifting Magnets , Plate Handling Magnets Device 2

Standard Export Package:

(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)



Easy Operation Steel Plate Lifting Magnets , Plate Handling Magnets Device 3 Easy Operation Steel Plate Lifting Magnets , Plate Handling Magnets Device 4
