Large Volumes Scrap Handling Equipment Magnets Round Shaped 75% Duty Cycle

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO,CE,SGS,BV
Model Number: MW5-110L/1-2
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Standard export package (Circular Lifting Magnet for Excavator )
Delivery Time: 10 workdays after signed the contract
Supply Ability: 80 Set/Sets per Month
Type: Electromagnetic Shape: Circular
Application: Industrial Magnet, Circular Electromagnets Used To Lift Steel Scraps Current: 27.5A
Rated Voltage: 220V Power: 6KW
Lifting Capacity For Steel Scrap: 450/400kg Lifting Capacity For Steel Ball: 6500kg
Lifting Capacity For Cast Iron: 1000/800kg Weight: 1500kg
Port: Shanghai/Shenzhen/Ningbo Etc
High Light:

skid steer magnet attachment

,

scrap handling magnets

Brief Introduction:



Round shaped scrap magnets are one of the best seller in SHENGANG Magnetics. Designed to lift large volumes of scrap in and out of confined areas, these powerful scrap magnets are becoming the standard in melt shops around the world.



They can help you keep your new high capacity furnaces full. Since new furnaces refine metal fast, they need more scrap to process. A SHENGANG scrap magnet adds up to 50% more lift capacity to each load. Extra heavy-duty construction with unique Multiple Bumper Perimeter Plates and resilient manganese steel bottom plates make this the toughest scrap magnet ever! It's available in a wide variety of sizes.



Features and Benefits:

Technical Data:



High Temperature Type

Duty Cycle:75%

Rated Voltage:DC-220V



Model

Current

(A)

Power

(KW)

Lifting capability(KG)

Weight

(KG)

Dimention(mm)

Steel ball

Steel ignot

Crop end

A

B

C

D

E

MW5-110L/1-2

27.5

6

6500

1000/800

450/400

1500

1100

1350

220

150

45

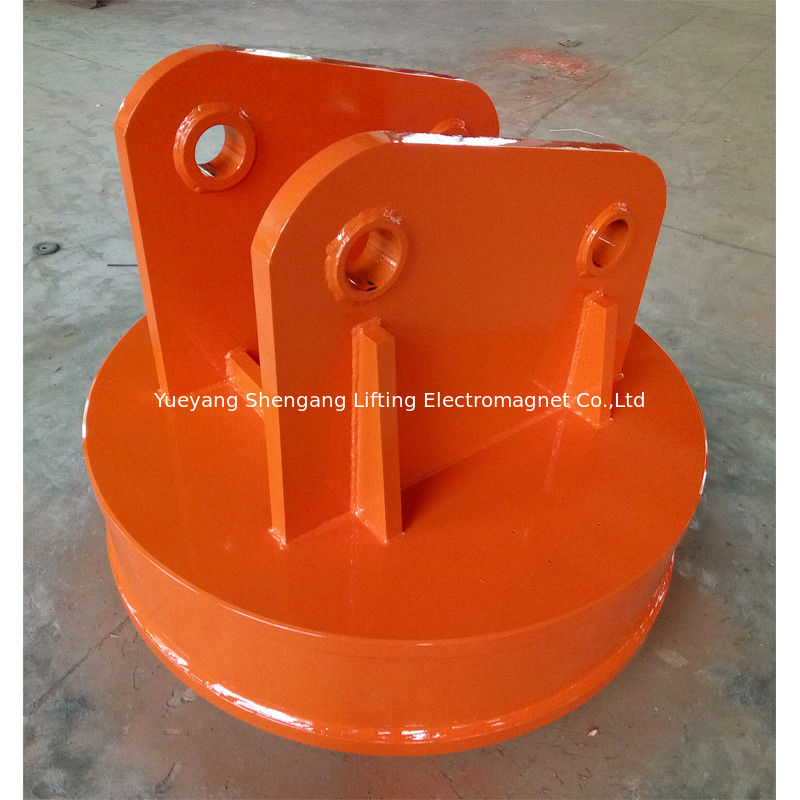

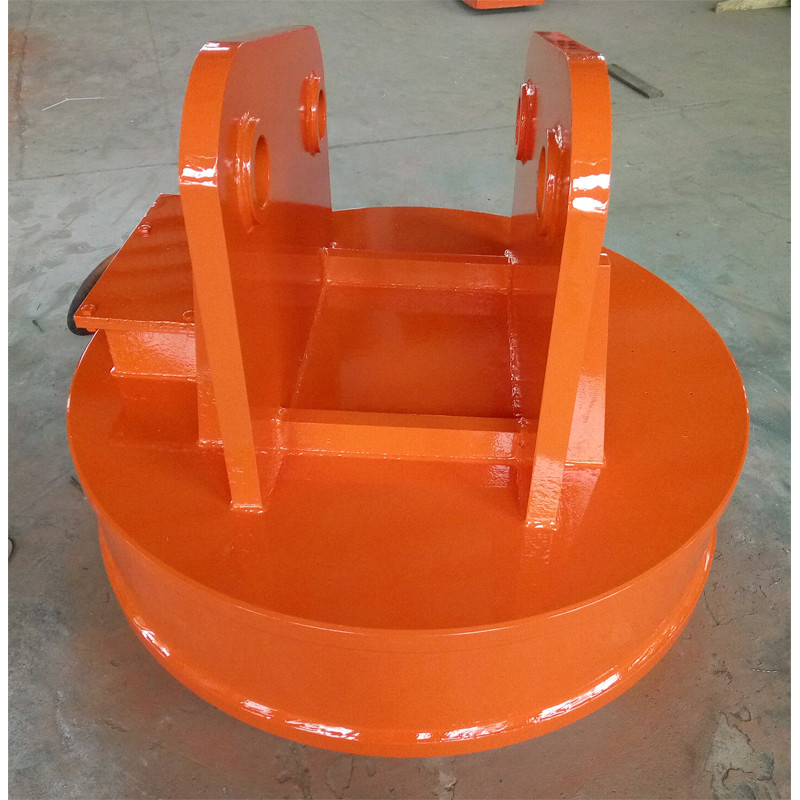

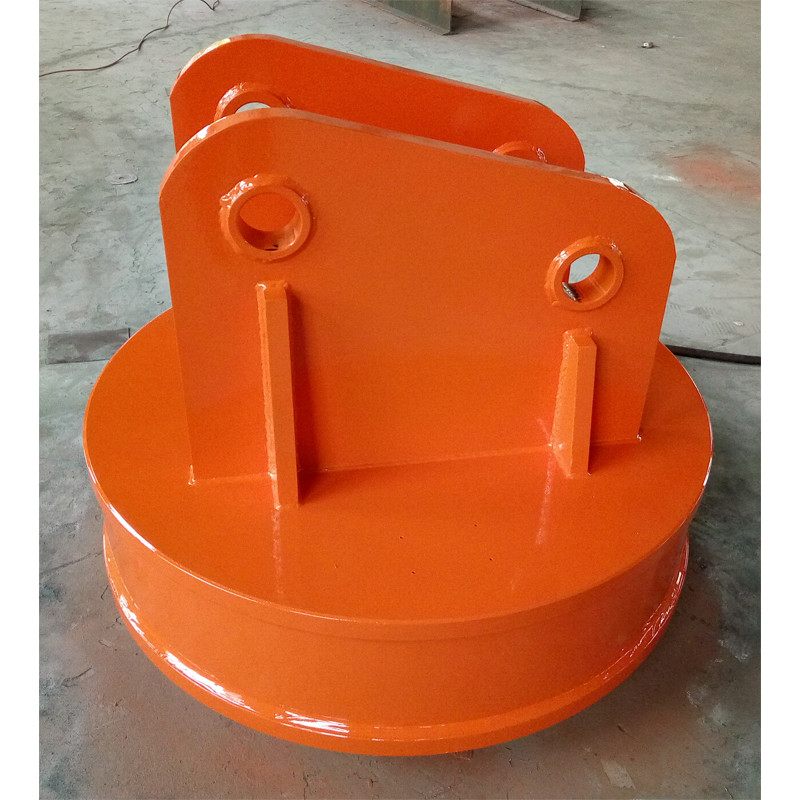

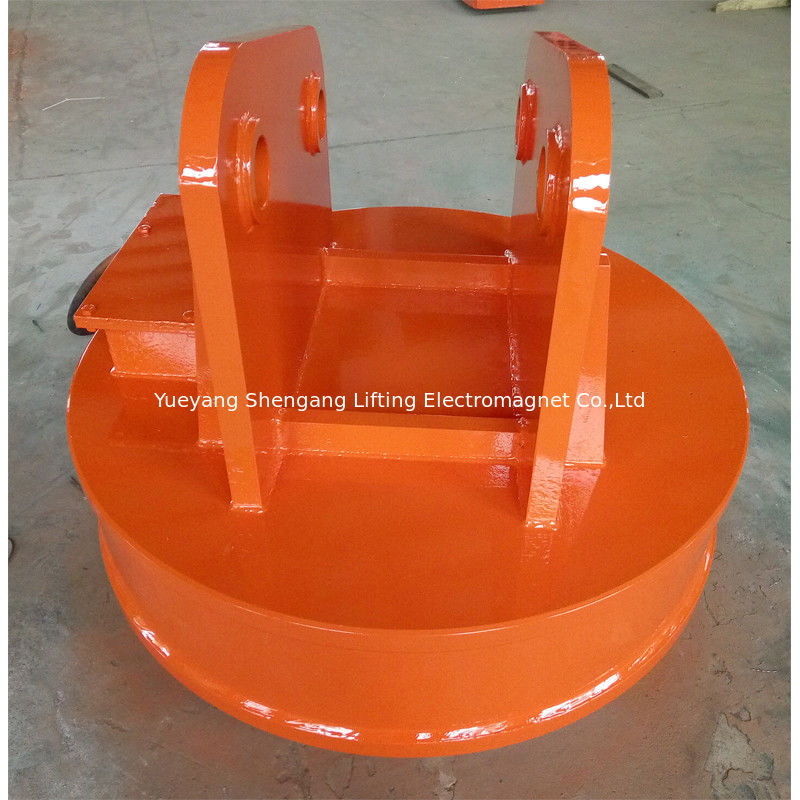

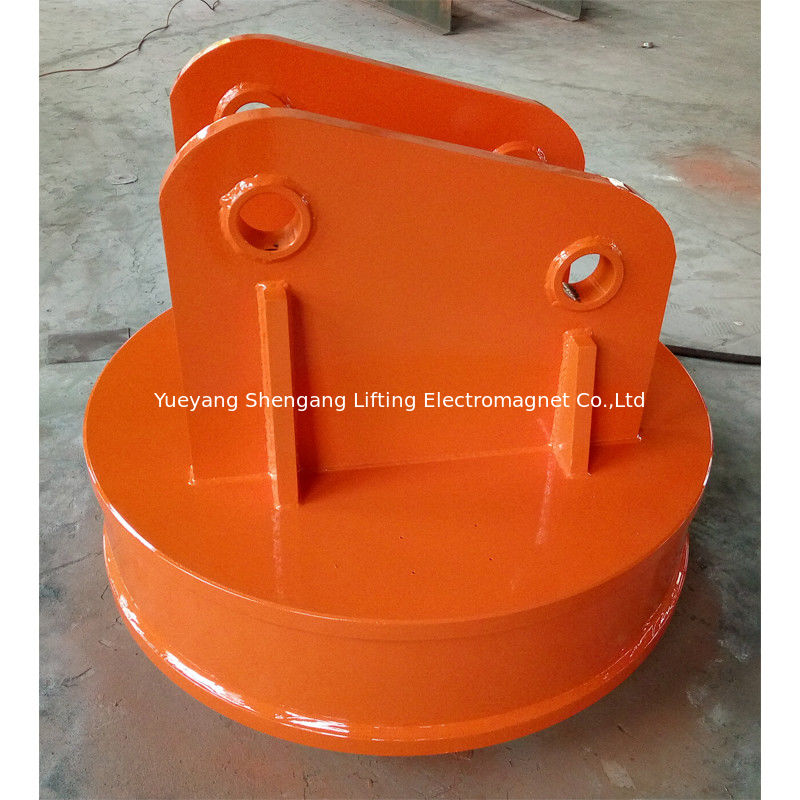

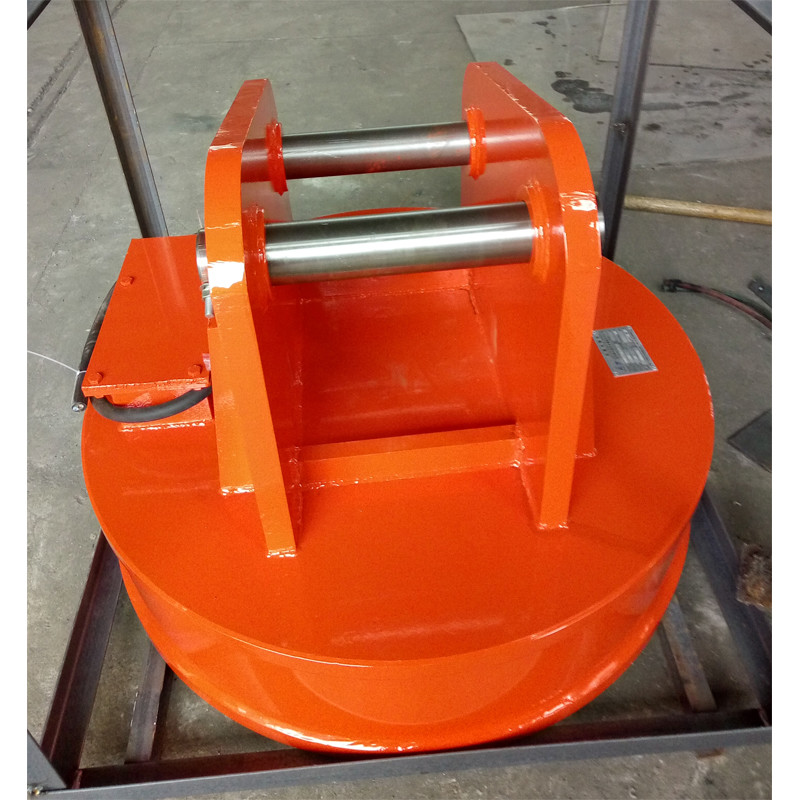

Overall dimension and product pictures:



Large Volumes Scrap Handling Equipment Magnets Round Shaped 75% Duty Cycle 0

Complete set of equipment:


· Lifting magnet;
· 15m length Cable;
· Rectifier control cabinet;
· Cable connector / Quick coupling;

· Generator (kindly confirm if you need, hydraulic type or diesel type)



Large Volumes Scrap Handling Equipment Magnets Round Shaped 75% Duty Cycle 1

Application:



Large Volumes Scrap Handling Equipment Magnets Round Shaped 75% Duty Cycle 2

Processing flow and Package:


The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.



Large Volumes Scrap Handling Equipment Magnets Round Shaped 75% Duty Cycle 3

Our Best Advantages:



1)Credited by CE,SGS,BV and ISO9001 certificate,with 29490m² total size of factory.
2)Adopt totally sealing structure with good property of moisture-proofing.
3)Simple and convenient installation, operation and maintenance.
4)optimized design ,reasonable structure, light dead-weight, strong lifting capacity,easy and safe operation



FAQ:



Q:Why customers choose us?
A:We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.



Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.



Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.



Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.



About Enquiry:


To help you get the best excavator lifting magnet for your application, we should have the following information:


1. What kind of the materials you want to lift? Is it steel scraps?
2. What' s the lifting capacity you expect per time?
3. Kindly provide your power supply information (__V, DC or AC? ___Hz)
4.For the excavator magnet,please tell us
--Do you prefer hook type or lifting chain type magnet?If prefer magnet with hook,please confirm hook size.

--Load capacity and Bucket capacity of your excavator?



Factory Tour:



Large Volumes Scrap Handling Equipment Magnets Round Shaped 75% Duty Cycle 4

Quick Response:



We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.



Convenient Transportation:

All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
