Place of Origin: | Hunan, China (Mainland) |
---|---|
Brand Name: | SHENGANG |
Model Number: | YC2-20 |
Minimum Order Quantity: | 1 Piece/Pieces |
Price: | Negotiable |
Packaging Details: | standard export package (Manual Lifting Equipment for Steel Plate) |
Supply Ability: | 80 Piece/Pieces per Month Manual Lifting Equipment |
Features: | Auto Cycle To Hold And Release The Materials | Product Name: | Manual Lifting Equipment For Steel Plate |
---|---|---|---|
Color: | Yellow | Type: | Electromagnet Circuit Changeover Type |
Weight: | 2210kg | Overall Dimension: | 1640*800*260mm |
Industrial: | Ship-making,engineering Mechanical, Automobile,etc. | Application 1: | Vacuum Lifter Handle Lifter To Lift Steel Plates |
OEM Service: | Available | Application 2: | Industrial Magnet |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Port: | Shanghai/Shenzhen/Guangzhou |
High Light: | heavy lifting magnets,sheet metal lifting device |
Is moving steel plate, rounds and blocks wasting precious time? Is manual lifting causing back injuries? Are slow machine set-ups cutting into machine output?
If the answer to any of these questions is "YES", SHENGANG-Lift lifting magnets are for you!
SHENGANG-Lift magnets are the fastest and safest way to transport raw stock and workpieces.
From theLittle SG weighting only 100kg that can safely lift 100kg, with a 3.2X safety factor!
To the Big SG that lifts up to 2000kg with a 3.2X safety factor!
SHENGNG-LIFT LIFTING MAGNET APPLICATIONS:
Move plate steel, block or round steel and iron material in your shop easily and safely.
Load machines faster. Load most work pieces to save time and boost production. It's perfect for loading or unloading press molds, plastic molds, machined parts and other ferrous parts and materials.
Fastest and safest way to lift without dangerous slings.
No electricity required. Super-powerful "rare earth" neodymium iron boron magnets require no electricity. There is no risk in losing lifting force even during power failures.

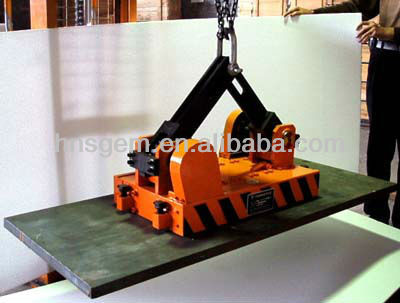

Manual Lifting Equipment 2000kg Lifting Magnet is used to lift and transfer the normal temperature steel plates in ship-making industry, engineering mechanical industry, automobile industry and so on. There have three series of YX and YC according to their material unloading modes.
SHENGANG LIFTING MAGNET FEATURES :
|
SHENGANG PERMANENT LITING MAGNETS MAGNT LIFTER OPERATION:
First center the magnet on the piece to be lifted. Then simply move the lever to the "ON" position to engage the magnet. Spring-loaded lock keeps magnet engaged until you release it.
BENEFITS: SAFE MATERIAL HANDLING & INCREASED PRODUCTIVITY
MAXIMUM RATED LOADS:
Calculate that the magnet will safely lift your material. The Maximum Load (ML) is different for plate and round materials and also depends upon stock thickness, carbon content, and surface finish. Use these formulas and tables to calculate the ML for your material type. Permanent Magnetic Lifter Plates Crane Lifter YC2
Technical Data:
Model | YC2-1 | YC2-2 | YC2-3 | YC2-5 | YC2-10 | YC2-20 | YC2-30 | YC2-50 | |
Overall dimension mm | A | 550 | 680 | 870 | 970 | 1440 | 1640 | 1950 | 2410 |
B | 470 | 540 | 580 | 800 | 800 | 800 | 1060 | 1220 | |
h | 105 | 130 | 135 | 130 | 155 | 260 | 310 | 310 | |
H | 518 | 815 | 1045 | 1020 | 1440 | 1300 | 1600 | 1900 | |
Mass kg | 130 | 250 | 390 | 575 | 1197 | 2210 | 3810 | 5470 | |
Lifting capacity kg | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 | 30000 | 50000 |
YC2 Permanent Magnetic Lifter Overall Dimension Drawing:
*Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.
*Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..
*Magnetic Seprator Series:
--application for separating the magnetic material from non-magneic material in metallurgical ,mining,power,seaport,ceramic industry,etc.
We are a professionl lifting electromagnet equipment manufacturer and exporter. Very sincerely looking for long-term win-win business here!
Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
Standard Export Package for Permanent Magnetic Lifter:
(fixed iron frame with five polywoodboard packing to keep safety long-distance transportation)
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.
Convenient Transportation:
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
