| Place of Origin: | Hunan, China (Mainland) |
|---|---|
| Brand Name: | SHENGANG |
| Certification: | CE |
| Model Number: | YC1-0.6 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | standard export package(Lifting Magnet 600kg) |
| Supply Ability: | 80 Piece/Pieces per Month lifting magnet 600kg |
| Condition: | New | Dimension(L*W*H): | 275*115*115mm |
|---|---|---|---|
| Product Name: | Permanent Handle Lifting Magnet With 600kg Capacity | Color: | Yellow |
| Type: | Permanent Type | Rated Lifting Capacity: | 600kg |
| Weight: | 20kg | Overall Dimension: | 275*115*115mm |
| Main Features: | Safety Lift And Efficient Machine Loading | Safety Factor: | 3.5X |
| Application: | Permanent Lifting Magnets Magnet Lifter To Lift Steel Plates | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 12months | Port: | Shanghai/Shenzhen/Guangzhou |
| High Light: | magnetic plate lifter,heavy lifting magnets |
||

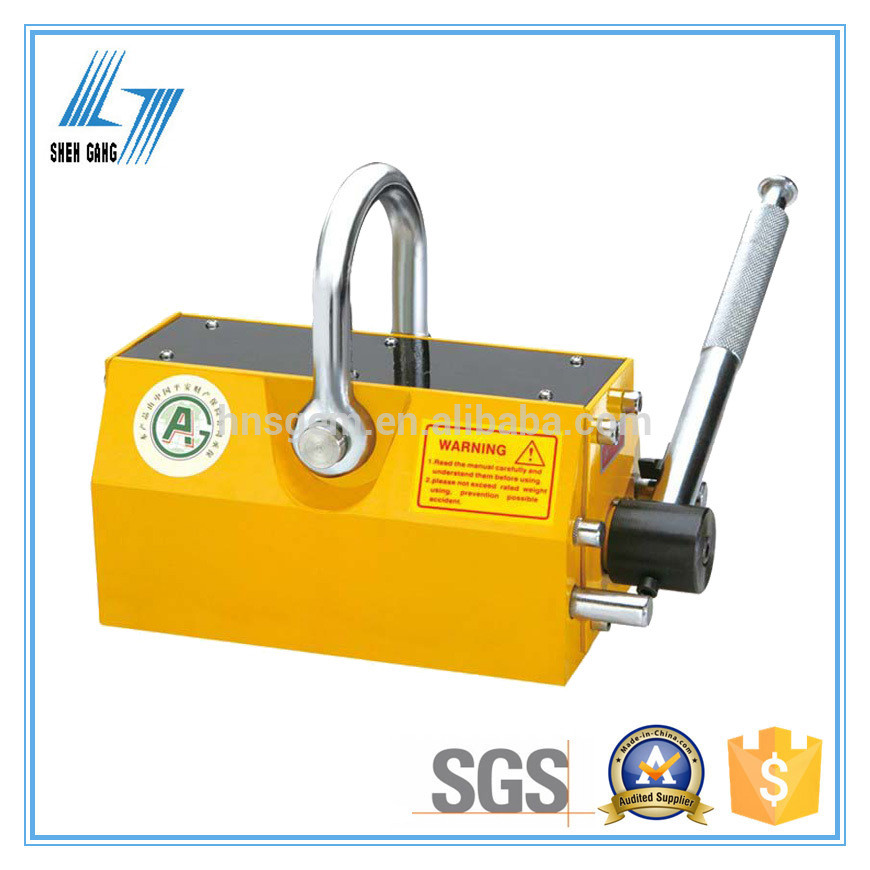

Permanent Handle Lifting Magnet with 600kg Capacity
Is moving steel plate, rounds and blocks wasting precious time? Is manual lifting causing back injuries? Are slow machine set-ups cutting into machine output?
If the answer to any of these questions is "YES", SHENGANG-Lift lifting magnets are for you!
SHENGANG-Lift magnets are the fastest and safest way to transport raw stock and workpieces.
From theLittle SG weighting only 100kg that can safely lift 100kg, with a 3.5X safety factor!
To the Big SG that lifts up to 2000kg with a 3.5X safety factor!
SHENGNG-LIFT LIFTING MAGNET APPLICATIONS:
Move plate steel, block or round steel and iron material in your shop easily and safely.
Load machines faster. Load most work pieces to save time and boost production. It's perfect for loading or unloading press molds, plastic molds, machined parts and other ferrous parts and materials.
Fastest and safest way to lift without dangerous slings.
No electricity required. Super-powerful "rare earth" neodymium iron boron magnets require no electricity. There is no risk in losing lifting force even during power failures.
It is used to lift and transfer the normal temperature steel plates in ship-making industry, engineering mechanical industry, automobile industry and so on. There have three series of YX and YC according to their material unloading modes.
SHENGANG LIFTING MAGNET FEATURES :
|
SHENGANG PERMANENT LITING MAGNETS MAGNT LIFTER OPERATION:
First center the magnet on the piece to be lifted. Then simply move the lever to the "ON" position to engage the magnet. Spring-loaded lock keeps magnet engaged until you release it.
BENEFITS: SAFE MATERIAL HANDLING & INCREASED PRODUCTIVITY
MAXIMUM RATED LOADS:
Calculate that the magnet will safely lift your material. The Maximum Load (ML) is different for plate and round materials and also depends upon stock thickness, carbon content, and surface finish. Use these formulas and tables to calculate the ML for your material type.
YC-1 Permanent Lifting Magnets Magnet Lifter Main Technical Data:
| Model | Max.Attraction Force(Kg) | Rated Lifting Capacity(Kg) | Overall Dimension(mm) | Weight(Kg) | |||
| A | B | C | D | ||||
| YC1-0.2 | 600 | 200 | 130 | 110 | 124 | 250 | 12 |
| YC1-0.3 | 900 | 300 | 180 | 110 | 124 | 270 | 16 |
| YC1-0.5 | 1500 | 500 | 258 | 110 | 124 | 380 | 25 |
| YC1-1 | 3000 | 1000 | 263 | 180 | 219 | 412 | 68 |
| YC1-2 | 6000 | 2000 | 288 | 220 | 269 | 552 | 150 |
YC-1 Permanent Magnetic Lifter Overall Dimension:
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :
1. What kind of the materials you want to lift? Steel plate( length*width*thickness)?
2. What' s the lifting capacity you expect per time?
