| Place of Origin: | Hunan, China (Mainland) |
|---|---|
| Brand Name: | SHENGANG |
| Certification: | SGS,BV,ISO,CE |
| Model Number: | MW5-110L/1 Lifting Magnet |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Standard export package (100kg Electromagnetic Lifter) |
| Delivery Time: | 10 workdays after signed the contract |
| Supply Ability: | 80 Piece/Pieces per Month 100kg Electromagnetic Lifter |
| Condition: | New | Dimension(L*W*H): | Accept Customised |
|---|---|---|---|
| Product Name: | Powerful 400kg Electromagnetic Lifter For Excavator | Shape: | Circular Excavator Magnet |
| Color: | Red | Rated Voltage: | DC-220V /DC24V |
| Power: | 7.7KW | Current: | 35A |
| Lifting Capacity: | 450/400kg | Weight: | 1350kg |
| Diameter: | 1100mm | Application: | Excavator Lifting Magnet To Lift Steel Scraps On Excavator |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 12 Months |
| Port: | Any Port In China | ||
| High Light: | mini excavator attachments,skid steer magnet attachment |
||

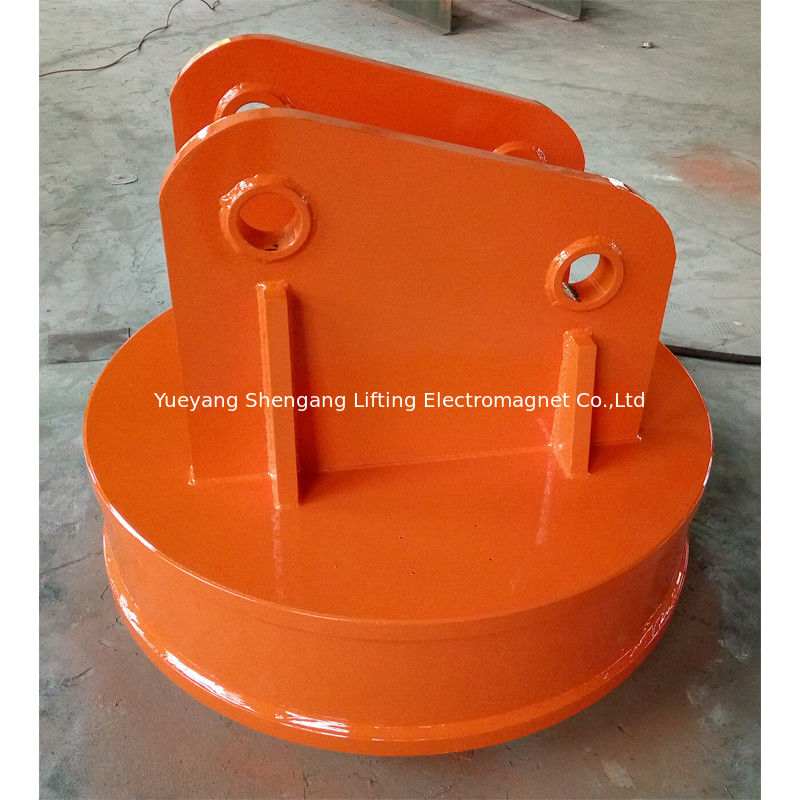

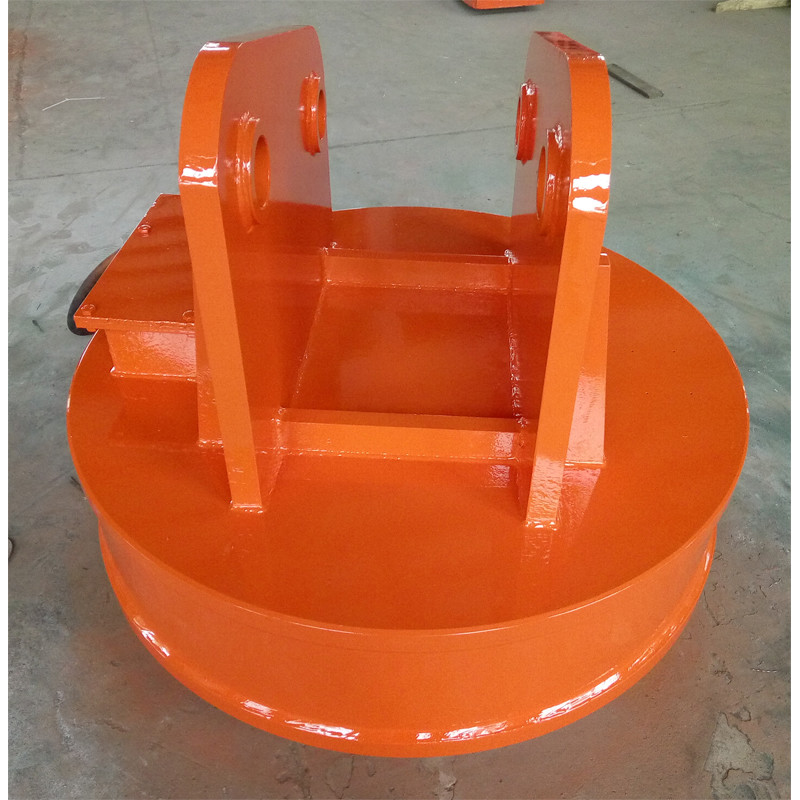

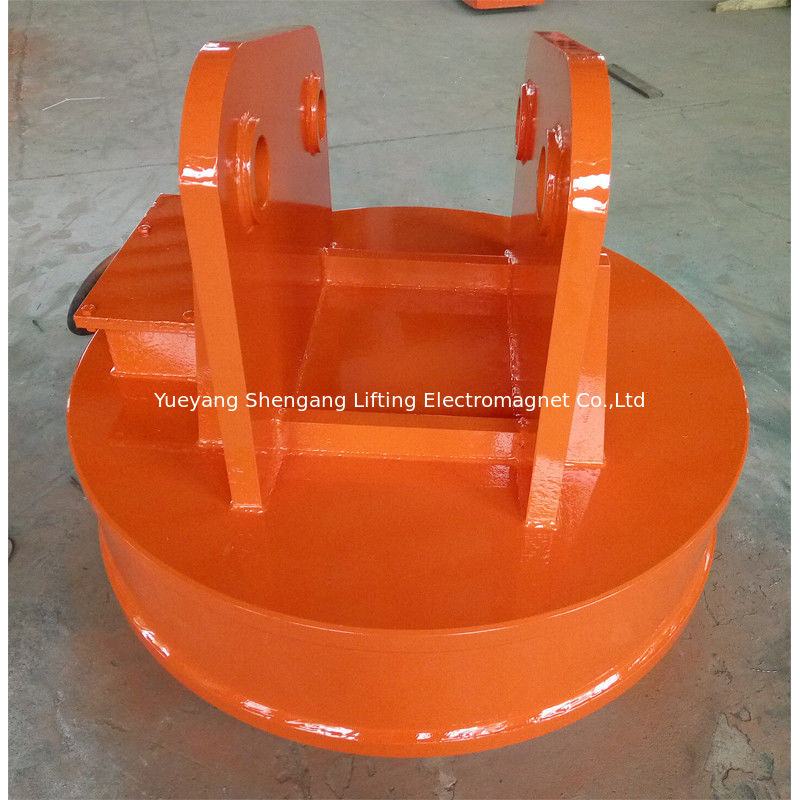

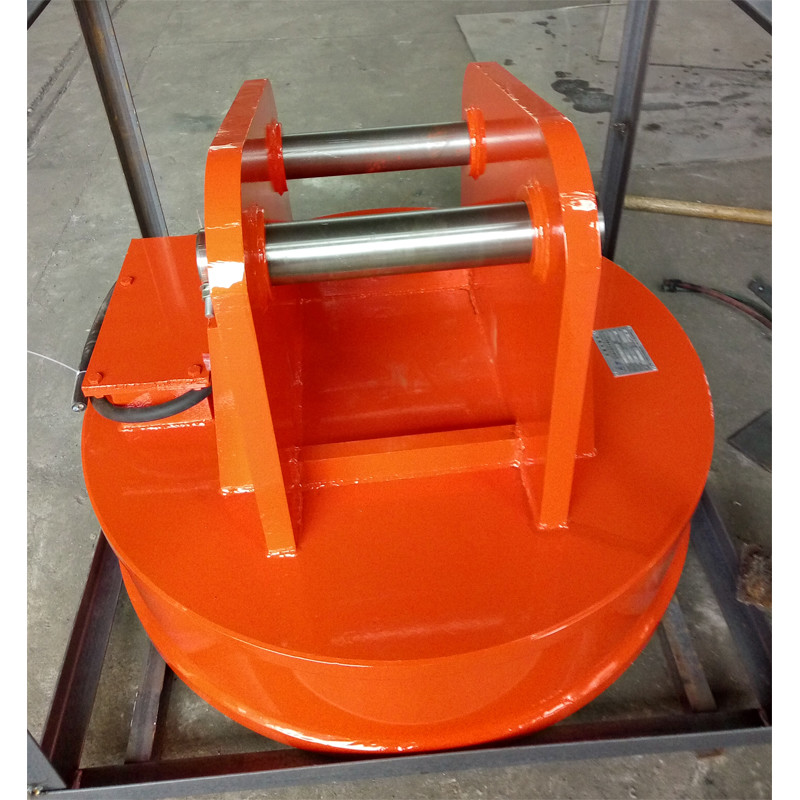

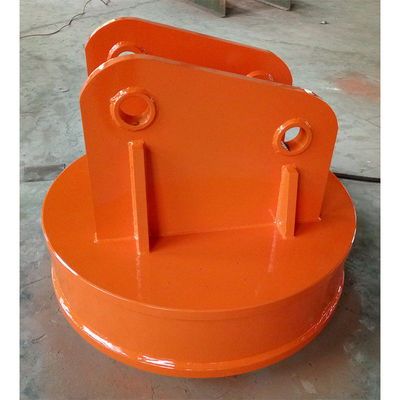

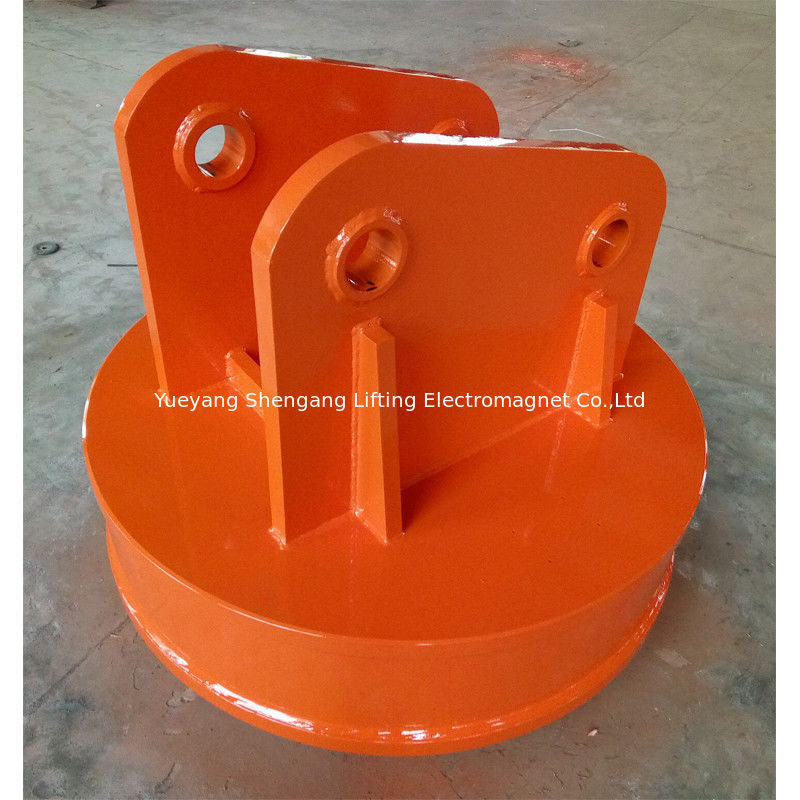

Powerful 400kg Electromagnetic Lifter For Excavator
1. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire or copper wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption,high lifting capacity and long serving life.
2. This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils.The insulation grade can reach class special C.
3. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
4. With simple structure reliability, it is suitable for working with all kinds of lifting equipments
Classification:
--Normal Temperature
--High Temperature
--High Frequency (75%)
--Diving Type
Coil Type:
--Aluminum Coil
--Copper Coil
Main Technical Data:
(Normal temperature type,Rated voltage DC-220v, Duty cycle TD-60%)
|
Model |
Current(A) |
Power(KW) |
Lifting capability(KG) |
Weight(KG) |
Dimention(mm) |
||||||
|
Steel ball |
Steel ignot |
Crop end |
A |
B |
C |
D |
E |
||||
|
MW5-70L/1 |
15 |
3.3 |
2500 |
380/200 |
120/100 |
490 |
700 |
800 |
160 |
90 |
30 |
|
MW5-80L/1 |
18 |
3.96 |
3000 |
480/250 |
150/130 |
620 |
800 |
800 |
160 |
90 |
30 |
|
MW5-90L/1 |
26.6 |
5.9 |
4500 |
650/440 |
250/200 |
800 |
900 |
1090 |
200 |
125 |
40 |
|
MW5-110L/1 |
35 |
7.7 |
6500 |
1000/800 |
450/400 |
1350 |
1100 |
1140 |
220 |
150 |
45 |
|
MW5-120L/1 |
45.5 |
10 |
7500 |
1300/1000 |
600/500 |
1700 |
1200 |
1180 |
220 |
150 |
45 |
|
MW5-130L/1 |
54 |
12 |
8500 |
1400/1100 |
700/600 |
2010 |
1300 |
1240 |
250 |
175 |
50 |
|
MW5-150L/1 |
71.2 |
15.6 |
11000 |
1900/1500 |
1100/900 |
2830 |
1500 |
1250 |
350 |
210 |
60 |
|
MW5-165L/1 |
75 |
16.5 |
12500 |
2300/1800 |
1300/1100 |
3200 |
1650 |
1590 |
370 |
230 |
75 |
|
MW5-180L/1 |
102 |
22.5 |
14500 |
2750/2100 |
1600/1350 |
4230 |
1800 |
1490 |
370 |
230 |
75 |
|
MW5-210L/1 |
129 |
28.4 |
21000 |
3500/2800 |
2200/1850 |
7000 |
2100 |
1860 |
400 |
250 |
80 |
|
MW5-240L/1 |
154 |
33.9 |
28000 |
4800/3800 |
2850/2250 |
9000 |
2400 |
2020 |
450 |
280 |
90 |
Applicaiton:
We provide professional service for customers from over 30 countries. And we exported our main products as lifting magnet, cable reel, magnetic separator to the market as North America, South America, Europe, Southeast Asia/ Mideast,Africa, Australia and so on.
We are also looking for clients in different market to agent our products.Once you have interesting, welcome to contact with us at your convenient time.
Production:
Our Best Advantages:
1)Credited by CE,SGS,BV and ISO9001 certificate,with 29490m² total size of factory.
2)Adopt totally sealing structure with good property of moisture-proofing.
3)Simple and convenient installation, operation and maintenance.
4)optimized design ,reasonable structure, light dead-weight, strong lifting capacity,easy and safe operation
FAQ:
Q:Why customers choose us?
A:We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.
Q:Can I have product with our design and nameplate?
A:Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
Q:How long is your delivery time?
A:Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.
Q:What is your warranty and after service?
A:Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.
Electromagnetic lifter Application:
About Enquiry:
To help you get the best lifting electromagnet for your application, please kindly provide the following information:
1. What are the materials you want to lift?
Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information:Voltage(V), DC/AC,Frequency(Hz), and information for overhead crane: single beam or double beam, single hook or double hook, how about its loading capacity?
5.Do you need only magnet or full set equipment with cable reel, control cabinet and cable connector?
6.Do you prefer FOB or CIF price, which is the destination port?
