Product Name: | Magnetic Lifter | Color: | Yellow |
---|---|---|---|
Type: | Electromagnet Circuit Changeover Type | Rated Lifting Capacity: | 300kg |
Max.Attraction Force: | 900kg | Weight: | 16kg |
Application: | Used To Lift And Transfer The Normal Temperature Steel Plates | Port: | Shanghai/Shenzhen/Guangzhou |
High Light: | heavy lifting magnets,sheet metal lifting device |

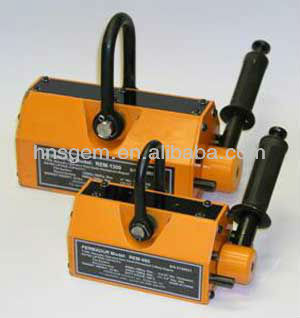

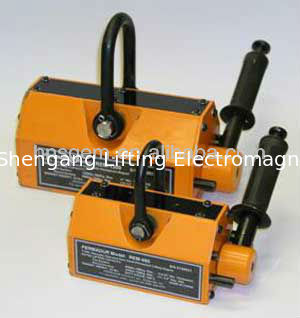

Magnetic Lifter (Hand Operated)
Is moving steel plate, rounds and blocks wasting precious time? Is manual lifting causing back injuries? Are slow machine set-ups cutting into machine output?
If the answer to any of these questions is "YES", SHENGANG-Lift lifting magnets are for you!
SHENGANG-Lift magnets are the fastest and safest way to transport raw stock and workpieces.
From theLittle SG weighting only 100kg that can safely lift 100kg, with a 3.5X safety factor!
To the Big SG that lifts up to 2000kg with a 3.5X safety factor!
SHENGNG-LIFT LIFTING MAGNET APPLICATIONS:
Move plate steel, block or round steel and iron material in your shop easily and safely.
Load machines faster. Load most work pieces to save time and boost production. It's perfect for loading or unloading press molds, plastic molds, machined parts and other ferrous parts and materials.
Fastest and safest way to lift without dangerous slings
No electricity required. Super-powerful "rare earth" neodymium iron boron magnets require no electricity. There is no risk in losing lifting force even during power failures.
It is used to lift and transfer the normal temperature steel plates in ship-making industry, engineering mechanical industry, automobile industry and so on. There have three series of YX and YC according to their material unloading modes.
SHENGANG LIFTING MAGNET FEATURES :
|
SHENGANG PERMANENT LITING MAGNETS MAGNT LIFTER OPERATION:
First center the magnet on the piece to be lifted. Then simply move the lever to the "ON" position to engage the magnet. Spring-loaded lock keeps magnet engaged until you release it.
BENEFITS: SAFE MATERIAL HANDLING & INCREASED PRODUCTIVITY
MAXIMUM RATED LOADS:
Calculate that the magnet will safely lift your material. The Maximum Load (ML) is different for plate and round materials and also depends upon stock thickness, carbon content, and surface finish. Use these formulas and tables to calculate the ML for your material type.
200 kg Magnetic Lifter Sheet Metal Lifter Main Technical Data:
Model | Max.Attraction Force(Kg) | Rated Lifting Capacity(Kg) | Overall Dimension(mm) | Weight(Kg) | |||
A | B | C | D | ||||
YC1-0.2 | 600 | 200 | 130 | 110 | 124 | 250 | 12 |
YC1-0.3 | 900 | 300 | 180 | 110 | 124 | 270 | 16 |
YC1-0.5 | 1500 | 500 | 258 | 110 | 124 | 380 | 25 |
YC1-1 | 3000 | 1000 | 263 | 180 | 219 | 412 | 68 |
YC1-2 | 6000 | 2000 | 288 | 220 | 269 | 552 | 150 |
YC-1 Permanent Magnetic Lifter Overall Dimension:
*Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.
*Cable Reel Series:
--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..
*Magnetic Seprator Series:
--application for separating the magnetic material from non-magneic material in metallurgical ,mining,power,seaport,ceramic industry,etc.
We are a professionl lifting electromagnet equipment manufacturer and exporter. Very sincerely looking for long-term win-win business here!
Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
Standard Export Package for Permanent Magnetic Lifter:
(fixed iron frame with five polywoodboard packing to keep safety long-distance transportation)
