Automatic Electrical Cord Rewinder

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JTB100-15-2
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: standard export package(Automatic Electrical Cord Rewinder)
Supply Ability: 100 Set/Sets per Month
Product Name: Automatic Electrical Cord Rewinder Series: JTB Type
Type: Slip Ring Built-in Installed Current: 77A
Color: Blue Cable Length: 15m
Weight: 100kg Installation Patterns: Vertical Coiling Through Radial Reversing Wheel
Phase Number: 2 Application: Elastic Power Supply Cable Reel
Port: Shanghai/Shenzhen/Guangzhou
High Light:

extension cord reel

,

industrial hose reel

Automatic Electrical Cord Rewinder



SPRING TYPE CABLE REEL



Brief Introduction :



We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.



Retractable Electric Cable Reel JTB Series



Features:

  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself.  There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service, over hanging type which can coil up much longer cables.



Benifits:

  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

  Technical Data:

SeriesitemABCD1D2dEFWWeight(kg)
15m,20m
Series
13003604005007001544060025095
2490650300100
3560720250115
4610770300120
5720880300150



Cable ModelEnabled Current 15m Seriesitem20m Seriesitem25m Seriesitem
Core No.*Cross SectionContinuously1 min on/off
YC2*105875JTA75-15-21JTA75-20-21JTA75-25-22
JTB75-15-2JTB75-20-2JTB75-25-2
YC2*1677100JTA100-15-21JTA100-20-23JTA100-25-22
JTB100-15-2JTB100-20-2JTB100-25-2
YC2*25106135JTA135-15-24JTA135-20-24JTA135-25-23
JTB135-15-2JTB135-20-2JTB135-25-2
YC2*35132170JTA170-15-24JTA170-20-25JTA170-25-24
JTB170-15-2JTB170-20-2JTB170-25-2





 Overall Dimension Drawing:

 Automatic Electrical Cord Rewinder 0Automatic Electrical Cord Rewinder 1

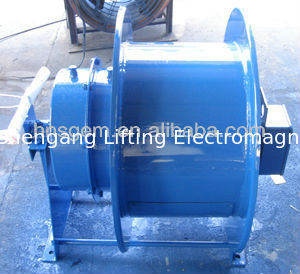

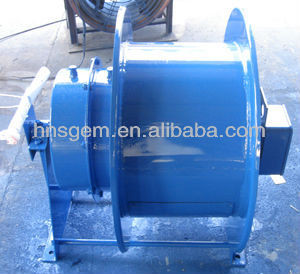

Physical Product Photo :



Automatic Electrical Cord Rewinder 2     Automatic Electrical Cord Rewinder 3



Automatic Electrical Cord Rewinder 4Automatic Electrical Cord Rewinder 5



Automatic Electrical Cord Rewinder 6

Automatic Electrical Cord Rewinder 7



 Automatic Electrical Cord Rewinder 8



Standard Export Package:



(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)

Automatic Electrical Cord Rewinder 9  Automatic Electrical Cord Rewinder 10



Quick Response:



We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.



Convenient Transportation:



All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.



Automatic Electrical Cord Rewinder 11
