High Quality Crane Cable Reel for Wires

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JTA75-25-2
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Crane Cable Reel for Wiresl)
Supply Ability: 100 Piece/Pieces per Month Crane Cable Reel for Wires
Conductor Material: Aluminum Insulation Material: Rubber
Jacket: Rubber Number Of Conductors: 2
Application: Industrial Cable Reel, Elastic Power Supply Cable Reel Product Name: High Quality Crane Cable Reel For Wires
Series: JTA Type Type: Slip Ring Built-in Installed
Current: 58A Color: Blue
Cable Length: 25m Weight: 100kg
Installation Patterns: Vertical Coiling Phase Number: 2
Port: Shanghai/Shenzhen/Guangzhou
High Light:

retractable cord reel

,

industrial hose reel

Cable High Quality Crane Cable Reel for Wires



Product Description

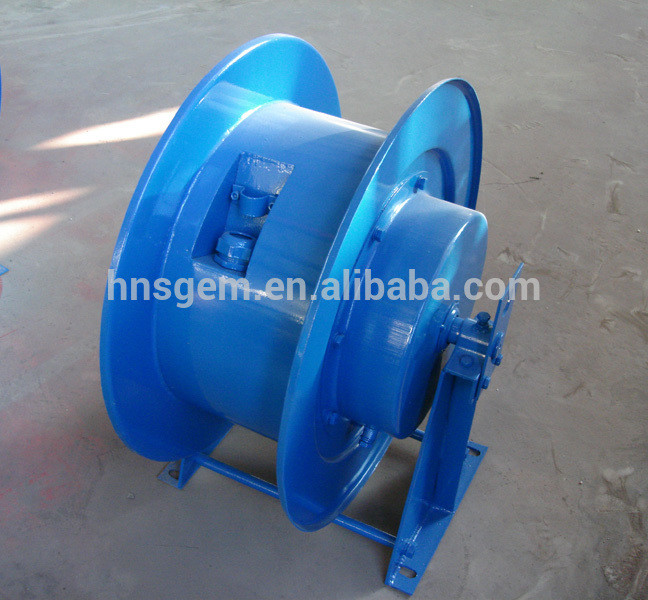

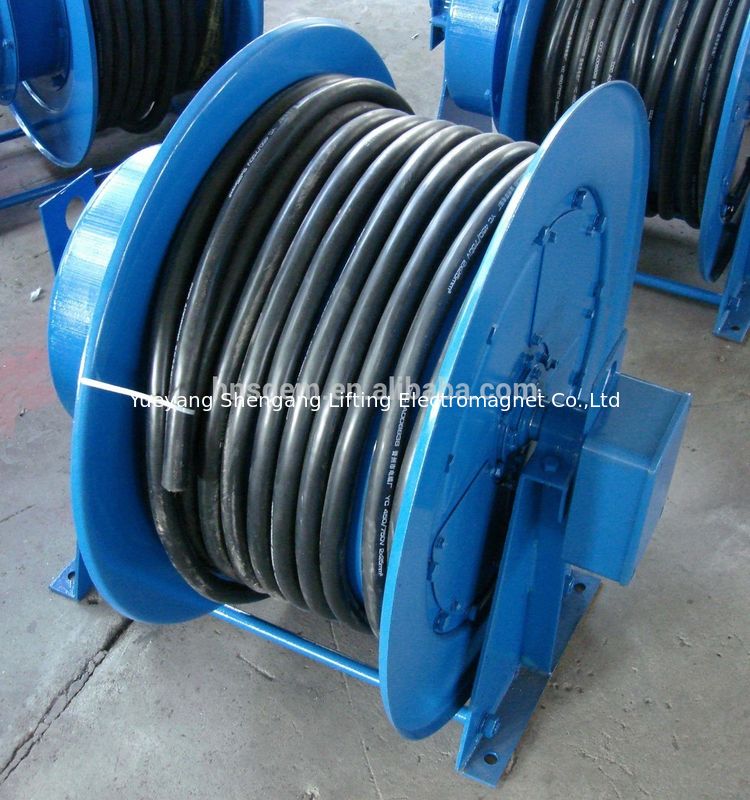

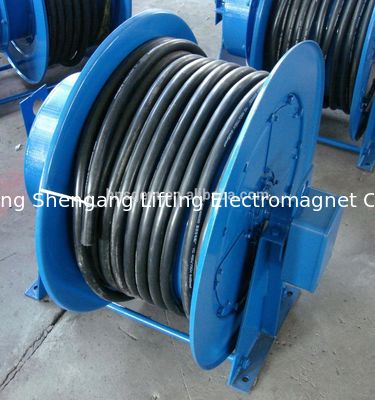

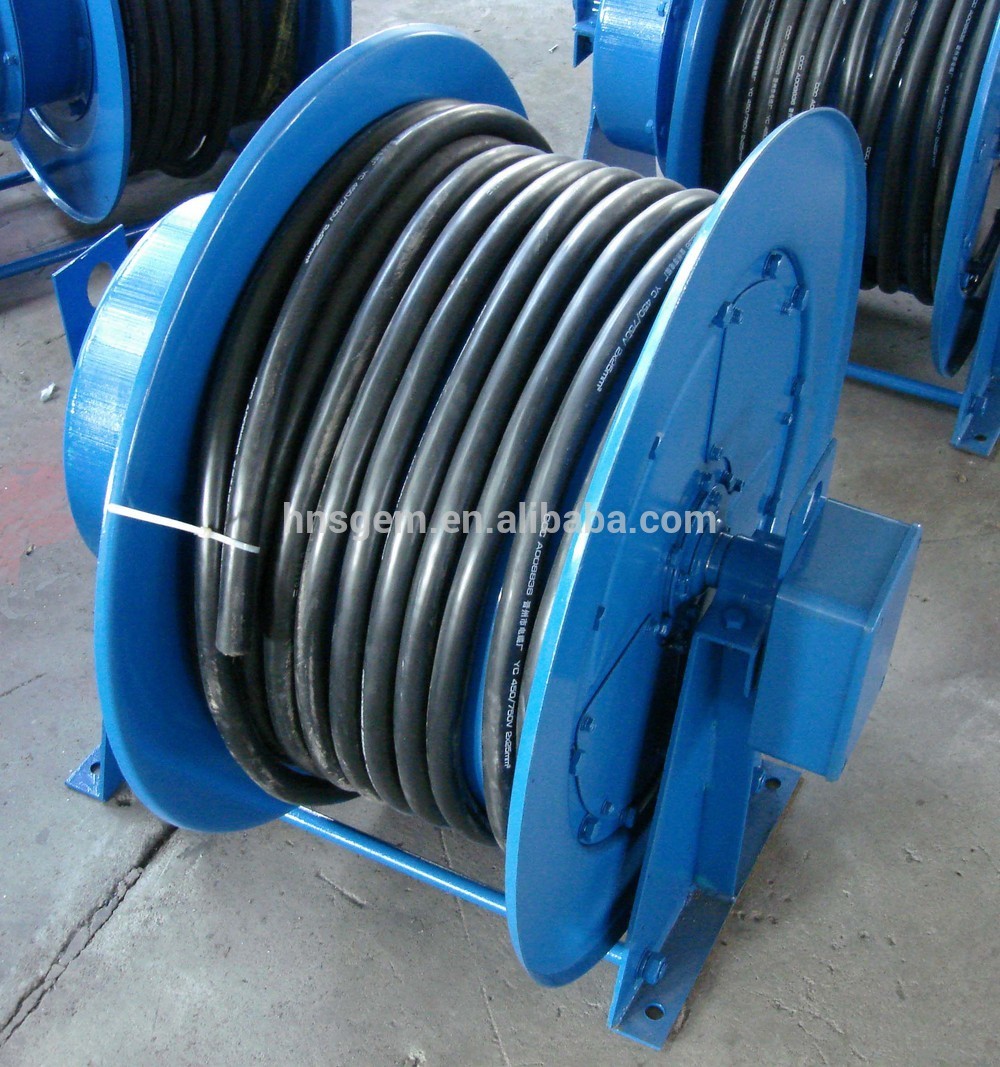

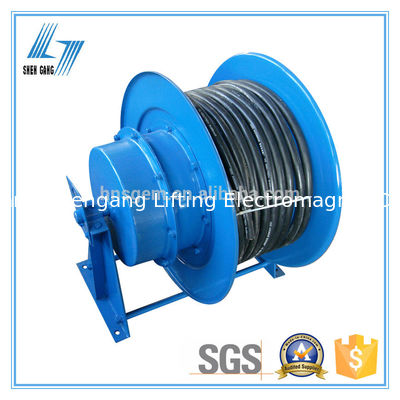

 Physical Product Photo :



High Quality Crane Cable Reel for Wires 0     High Quality Crane Cable Reel for Wires 1



High Quality Crane Cable Reel for Wires 2

Brief Introduction:



We have being design and manufacture the power supply cable reel with advanced technology and excellent performance to meet with the requirement of supplying power to the mobile electrical apparatus such as lifting electromagnet, electric powered flat bed trailer,all kinds of cranes, electrical powered grab buckets,etc.. According to the driving source of spooling off the cable, this reel has two types available as: Spring Type & Electrical Powered Type.



Features:

  • Using spiral springs as power without electric energy consumption to keep reliable in operation
  • Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
  • Equipped reversible unit to avoid the reel counter-- rotating to breakthe springs
  • Power supply easily, safety and reliability in operation, correct strs on the cables

Elastic power supply cable reel series JT is a kind of automatic cable reel driven by the spiral springs which adopted the imported international universal technology of spiral power spring exploiting energy storage of itself. There are three different types of product available for the customers: slip ring built-in type with compact and pretty contour; slip ring exterior installed type in convenience of service; over hanging type which can coil up much longer cables.



Benifits:

  • Easy installation and start of operation
  • Corrosion and water proof
  • Silver brush would prevent and reduce the noise by conductors friction

Technical Data:



SeriesitemABCD1D2dEFWWeight(kg)
15m,20m
Series
13003604005007001544060025095
2490650300100
3560720250115
4610770300120
5720880300150



Cable ModelEnabled Current 15m Seriesitem20m Seriesitem25m Seriesitem
Core No.*Cross SectionContinuously1 min on/off
YC2*105875JTA75-15-21JTA75-20-21JTA75-25-22
JTB75-15-2JTB75-20-2JTB75-25-2
YC2*1677100JTA100-15-21JTA100-20-23JTA100-25-22
JTB100-15-2JTB100-20-2JTB100-25-2
YC2*25106135JTA135-15-24JTA135-20-24JTA135-25-23
JTB135-15-2JTB135-20-2JTB135-25-2
YC3*10+1*65065JTA65-15-42JTA65-20-44JTA65-25-42
JTB65-15-4JTB65-20-4JTB65-25-4



 Overall Dimension Drawing:

 High Quality Crane Cable Reel for Wires 3



FAQ

 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number and cross section, coil length of cable, electric current)?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?



For our relate products you may interested in, kindly click for details:



1. JTA Series Spring Driven Cable Reel



2. JT Series Hose Reel



3. Motor Type Cable Reel



4. Hyster Type Cable Reel



5. Motorized Couple Type Cable Reel



6. Magnetic Coupling Type Cable Reel



*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

High Quality Crane Cable Reel for Wires 4

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

High Quality Crane Cable Reel for Wires 6

Company Information

We are a professionl lifting electromagnet equipment manufacturer and exporter with more than 15 years export experience. Very sincerely looking for long-term win-win business here!



Major exports include lifting electromagnet, magnetic lifter, electromagnetic separator, cable reel, control cabinet and magnetic stirr, etc.



Our factory also pass the SGS audit per year with certification issued.



We warmly welcome you to enquiry or visit us, and also appreciate any of your comments!



We also have our own brand as "SHENGANG"

High Quality Crane Cable Reel for Wires 8 High Quality Crane Cable Reel for Wires 9

High Quality Crane Cable Reel for Wires 10High Quality Crane Cable Reel for Wires 11

Packaging & Shipping

 (fixed iron frame with five-plywoodboard packing to keep Crane Cable Reel for Wires with a safety and long-distance transportation and no need fumigation when clear custom )

High Quality Crane Cable Reel for Wires 12

Our Services

 Quick Response:

We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 24 hours.

Please fell free to call us at any time if there is any questions.



Convenient Transportation:



All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you till the goods arrive.
