High Quality Torque of The Electric Motor Cable Reel

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JDD90-50-4G
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Torque of The Electric Motor Cable Reel)
Supply Ability: 100 Piece/Pieces per Month
Product Name: High Quality Torque Of The Electric Motor Cable Reel Color: Red
Current: 90A Cable Length: 50m
Cable Model: UG-6000 3*25+1*16 Reel Type: Cable Reel
Power Type: Moment Motor Powered Installation Pattern: Horizontal Coiling On The Ground(reel Movable)
Phase Number: 4 Weight: 960kg
Port: Shanghai/Shenzhen/Guangzhou
High Light:

extension cord reel

,

industrial hose reel

High Quality Torque of The Electric Motor Cable Reel



High Voltage Cable Reel for Moment Motor Powered JDD Series



Brief Introduction:



Motor-driven cable reel is designed for coiling or releasing the large specification and long distance power supply cable, which can be in synchronous operation with the mobile electrical apparatus to coil or release the cables. In view of its power patterns which is divided into torque motor driven type and three phase asynchronous motor driven type. There are so many motor-driven reel models available which can coil or release the power supply cables under 500V and high voltage cables for 6kv and 10kv

1. For different power cable, such as 3x120+1x35, 3x95+1x35 etc
2. Its driven by the electric motor
3. The cable reel is usually fixed on the mobile machine and works horizontally.
4. Additional turnover anchor will be provided if the power is feed centrally
5. Additional control cabinet is also equipped.



 Features:

  • for large specification and long distance power supply cable
  • keep in synchronous with the mobile electric apparatus

Technical Data:



Overall Dimension:

Item

A

B

C

D1

D2

d

E

F

H

I

K

W

Weight kg

1

880

800

910

1000

1600

26

1200

1800

1370

100

110

250

960

2

880

800

910

1000

1800

26

1200

1800

1370

100

110

250

980

3

880

800

910

1000

2000

26

1200

1800

1370

100

110

250

1010

4

880

800

910

1200

2500

26

1200

1800

1370

100

110

250

1080

5

880

800

1000

1000

1800

26

1300

1900

1460

100

110

250

1150

6

880

800

1000

1500

2500

26

1300

1900

1460

100

110

250

1250



Main Technical Data:

Cable Model

Current A

50m Series

Item

100m Series

Item

150m Series

Item

200m Series

Item

Continuously

1 min on; 1 min off

UG-6000

3×16+1×10

65

85

/



/



JDD65-100-4G

2

JDD65-150-4G

3

JDD65-200-4G

4

UG-6000

3×25+1×16

90

120

JDD90-50-4G

1

JDD90-100-4G

2

JDD90-150-4G

3

JDD90-200-4G

4

UG-6000

3×35+1×16

110

150

JDD110-50-4G

1

JDD110-100-4G

2

JDD110-150-4G

3

JDD110-200-4G

4

UG-10000

3×25+1×16

90

120

/



/



JDD90-100-4GG

5

/



/



JDD90-200-4GG

6





Remark:

1. Cable is provided by customers

2. If choosing flat cables, please remark this when place the order

3. G stands for 6KV high voltage cable reel. GG stands for  10KV voltage cable reel.



Overall Dimension Drawing:



 High Quality Torque of The Electric Motor Cable Reel 0

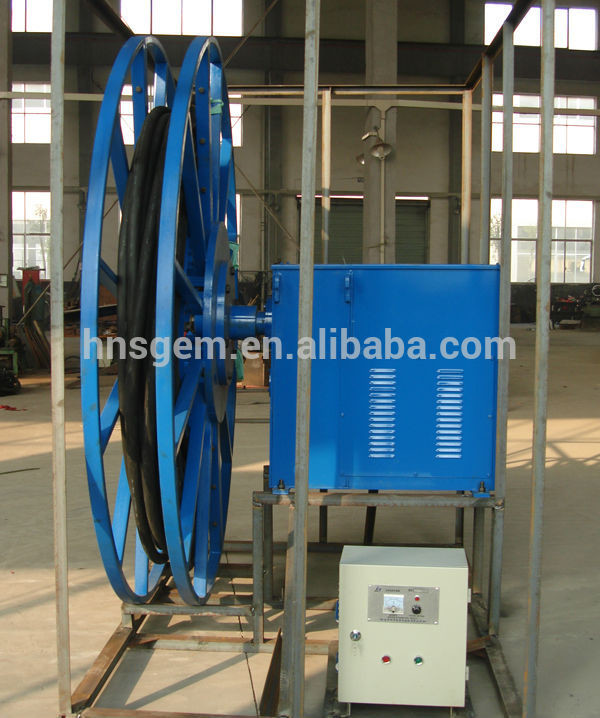

Physical Product Photo:



High Quality Torque of The Electric Motor Cable Reel 1



High Quality Torque of The Electric Motor Cable Reel 2



High Quality Torque of The Electric Motor Cable Reel 3



*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

High Quality Torque of The Electric Motor Cable Reel 4

High Quality Torque of The Electric Motor Cable Reel 6

High Quality Torque of The Electric Motor Cable Reel 7High Quality Torque of The Electric Motor Cable Reel 8

High Quality Torque of The Electric Motor Cable Reel 9

High Quality Torque of The Electric Motor Cable Reel 10

(fixed iron frame with five-plywoodboard packing to keep safety and long-distance transportation)
