Industrial Mono Spiral Hysteresis Cable Reel

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JCD Motor Cable Reel
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(Industrial Mono Spiral Cable Reel)
Supply Ability: 100 Piece/Pieces per Month industry hysteresis type cable reel
Features: Compact, Small Structure, Invariable Of Tension Product Name: Industrial Mono Spiral Hysteresis Cable Reel
Color: Red Type: Hysteresis Type
Reel Type: Cable Reel Installation Pattern: Horizontal Coiling On The Ground (reel Movable)
Series: Hysteresis Cable Drum Power Optional: 380V And 10KV
Application: For Power Cable Drum Application 2: Industrial Cable Reel
Port: Shanghai/Shenzhen/Guangzhou
High Light:

retractable cord reel

,

industrial hose reel

Industrial Mono Spiral Hysteresis Cable Reel



---Hysteresis Cable Reel  JCD Series



Product Description

 Brief Description:



Magnetic hysteresis type cable drum realizes coiling up and spooling off cables through transmitting the torque of motor in magnetic field. Adopt records of difference ring device, it can be in synchronous operation with the mobile electric apparatus to coil up or spool off the cables. It features compact, small structure, invariable of tension, widely used in supply power of the electric apparatus on large-scale mobile devices.



Model Designation:



Cable drum category

L0

H0

H1

B1

B2

A

Mounting rack

For power force

(380v)

633

1205

325

420

480

583

Unused

For power force

(380v)

922

1346

461

636

682

837

Unused

For power force

(6000v)

1025

1346

432

685

745

850

Use

For power force

(10000v)

1228

1346

466

698

745

896

Use

For control

14rings

633

1205

466

420

480

583

Unused

24rings

753

37rings

970

1346

466

420

480

747

Use

48rings

1100



 Overall Dimension Drawing: Industrial Mono Spiral Hysteresis Cable Reel 0



3.

        A. It is the structure in bulk that each coiler bar is greater than 2500, users refer to assembling and installing drawing by oneself, it is the whole structure that be less than or equal to 2500.

        B. Parameters and cable capacity refer to spool of data long-timely hindered rotation motor.

4 . The category of the electrical collector.

Number 1 electrical collector' s single current is less than 150A, Number 2 electrical collector's single current is less than 400A, Number 3 electrical collector is kind of high voltage slip ring group with current is great than 400A, Number 4 electrical collector's single current is less than 30A.

5. The connection method of cable

        A. Number 1, 4 collector slip ring group have lead wire which the incoming cable connects with the connecting end of the spool.

        B. Number 2, 3 collector slip ring group is without lead wire cable connects with slip ring directly.

6. Quantity selection of driver:

A. Total torque that the cable needs.

                 P=W*h*D/μ

           w: Cable unit weight N

           h: The height from spool center to

           D: Cable capacity' diameter of spool

           μ: working efficiency u=0.85

B. Driver number

           n>Adopt 2 thread

           n>Adopt 3 thread analogize sequentially

7. User provide below data after model selection

(1).cable specification and contour size;

(2).cable length (including reserve coil number)

(3). winding arranged single row or multi-row.

(4). the installation height of the cable drum.

(5). whether taking cable rack for setting cable.

(6).whether taking restricted position of protection.



Physical Product Photo:

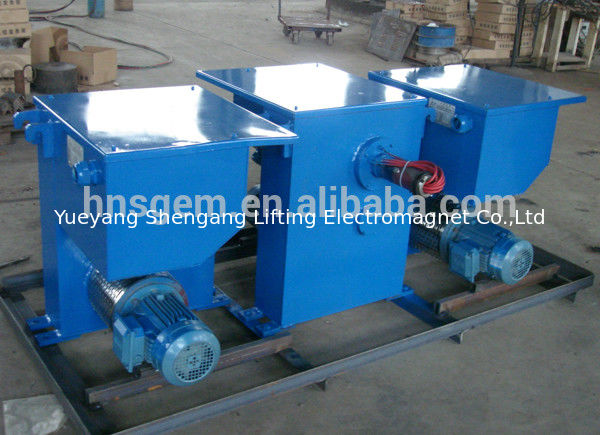

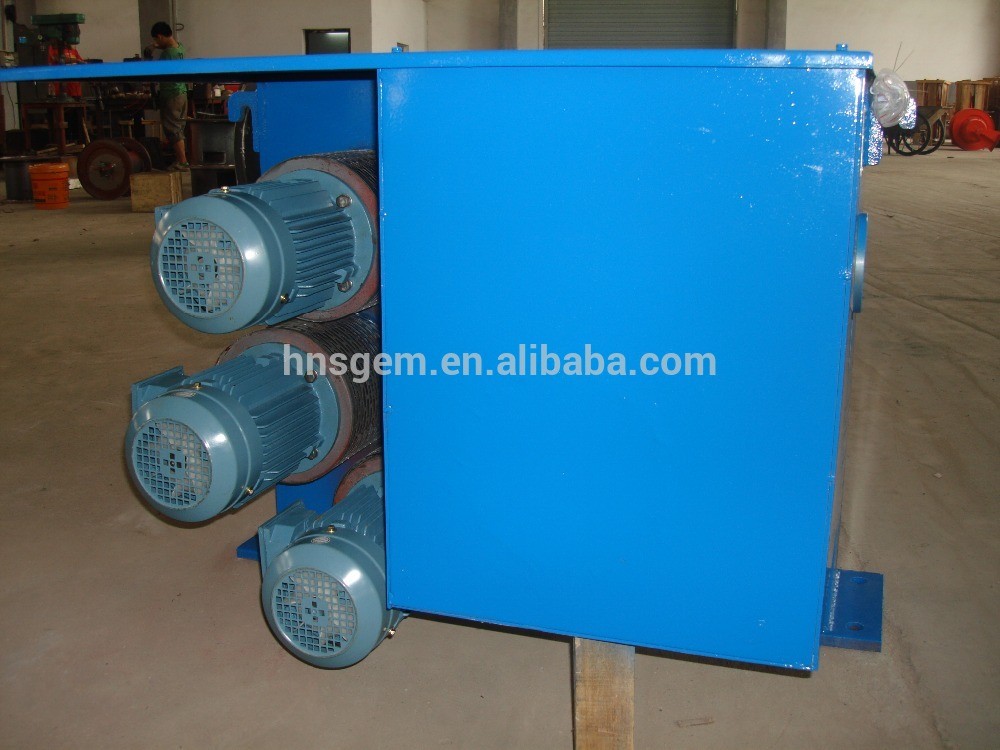

Design I:



Industrial Mono Spiral Hysteresis Cable Reel 1



Industrial Mono Spiral Hysteresis Cable Reel 2



Industrial Mono Spiral Hysteresis Cable Reel 3

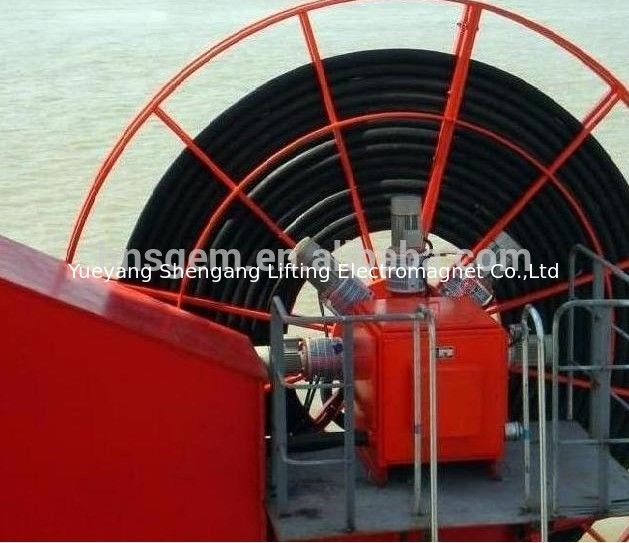

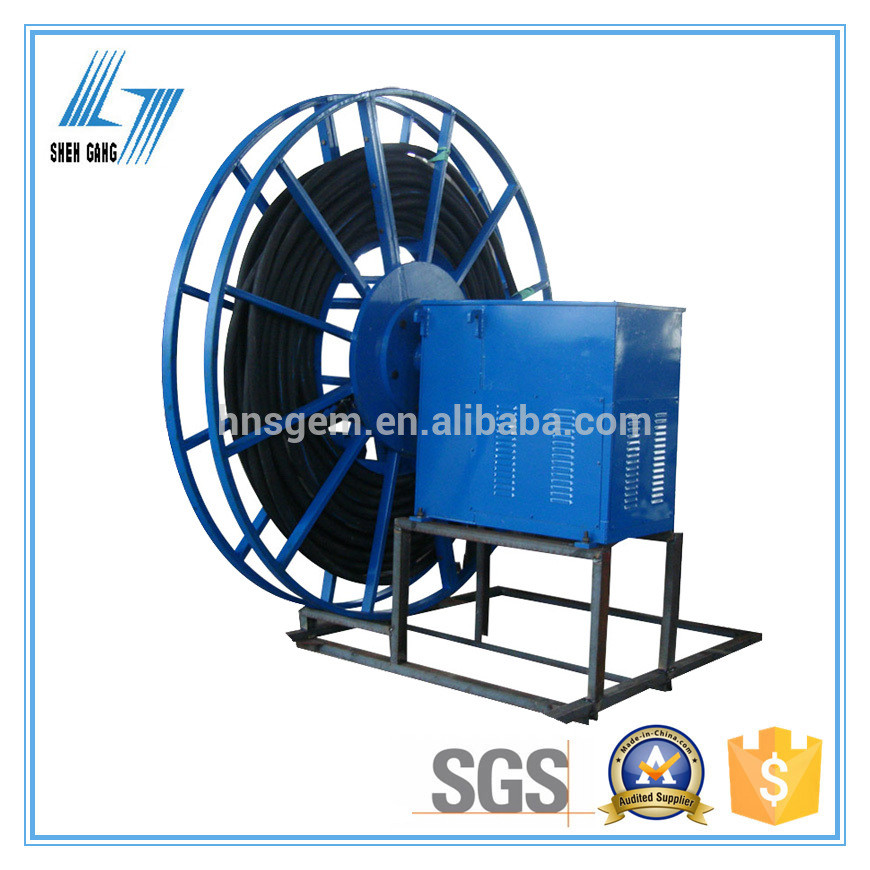

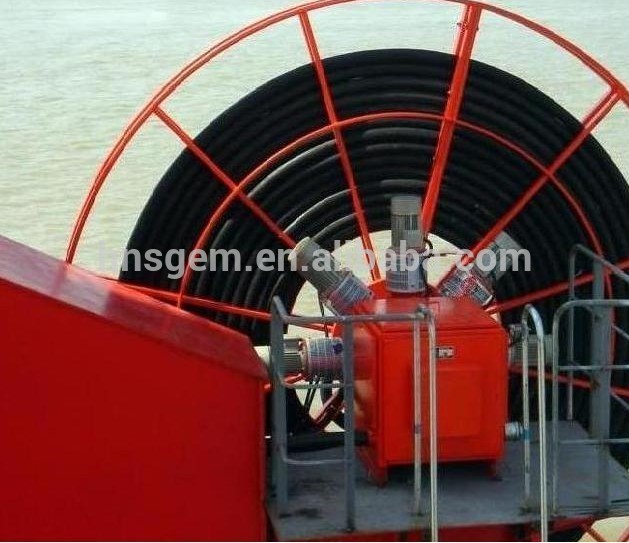

Design II (Box-Type with Easy Maintenace for Gear Part):

 Industrial Mono Spiral Hysteresis Cable Reel 4Industrial Mono Spiral Hysteresis Cable Reel 5



FAQ

 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :



1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number and cross section, coil length of cable, electric current)?



3. What kind of mobile equipment will the cable reel be applied with?

lifting magnet, crane or others



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?
