Class H Insulation Scrap Lifting Magnet Industrial Grade Normal Temperature Type

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Certification: ISO9001:2008,CE,BV,SGS
Model Number: MW5-165L/2
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export package(High Temperature Electromagnet for Lifting Scraps)
Supply Ability: 80 Piece/Pieces per Month High Temperature Electromagnet
Condition: New Dimension(L*W*H): 1650*1650*550mm
Product Name: High Temperature Electromagnet For Lifting Scraps Shape: Circular
Current: 60.6A Rated Voltage: 220V
Power: 13.3KW Lifting Capacity For Steel Scrap: 1300/1100kg
Lifting Capacity For Steel Ball: 12500kg Lifting Capacity For Cast Iron: 2300/1800kg
Weight: 3500kg Application: Suitable For Transporting Steel Scraps Under Normal Temperature
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
Port: Shanghai/Shenzhen
High Light:

circular lifting magnet

,

magnetic lifting device

High Temperature Electromagnet for Lifting Scraps



Product Description:


1. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire or copper wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption,high lifting capacity and long serving life.

2. This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils.The insulation grade can reach class special C.

3. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.

4. With simple structure reliability, it is suitable for working with all kinds of lifting equipments



Product Name High Temperature Electromagnet for Lifting Scraps
Series No. MW5
Diameter 1650mm
Current 60.6A
Cold State Power 13.3KW
Rated Voltage DC-220V
Duty Cycle 60%
Weight 3500KG
Composite Iron core, aluminum coil,,Q235 steel plate,carbon steel,mica sheet,ethoxyline resin,etc.
Application Magnet used for lifitng and transporting magnet-conductive materials such as steels in metallurgy
industry, mine industry, machinery industry,communication and transportation industry,etc.
Pakaging of Magnet fixed iron frame with five-plywoodboard and no need fumigation
Lead Time within 15 work days after deposit cofirmed
Payment T/T, Western Union, LC at sight
Warranty 12 months
Notes   1. Please let us know your lifting capacity, we can make different diameter magnet based on your different requirements.
 2. Our MOQ is 1pc. (Different quantity will with different price.)



Technical data:



High temperature type(The attached material is below 700 centigrade;Rated voltage DC-220V;Power-on sustaining rate TD-60%)
Model Electric current (A) Cold-state power (kw) lifting capacity (kg) cold/hot state Mass (kg) Overall dimension (mm)
steel ball cast iron steel scrap A B C D E
MW5-70L/2 12.77 2.8 2500 380/200 120/100 520 700 820 160 90 30
MW5-80L/2 16.1 3.54 3000 480/250 150/300 650 800 820 160 90 30
MW5-90L/2 20.5 4.5 4500 600/400 250/200 900 900 1110 200 125 40
MW5-110L/2 27.5 6 6500 1000/800 450/400 1500 1100 1350 220 150 45
MW5-120L/2 33.6 7.4 7500 1300/1000 600/500 1800 1200 1280 220 150 45
MW5-130L/2 40.6 8.9 8500 1400/1100 700/600 2100 1300 1280 250 175 50
MW5-150L/2 51.4 11.3 11000 1900/1500 1100/900 3200 1500 1620 350 210 60
MW5-165L/2 60.6 13.3 12500 2300/1800 1300/1100 3500 1650 1630 370 230 75
MW5-180L/2 95 20.9 14500 2750/2100 1600/1350 4500 1800 1510 370 230 75
MW5-210L/2 104 22.9 21000 3500/2800 2200/1850 7500 2100 1910 400 250 80
MW5-240L/2 118.6 26 26000 4800/3800 2850/2250 9700 2400 2080 450 280 90

Class H Insulation Scrap Lifting Magnet Industrial Grade  Normal Temperature Type 0

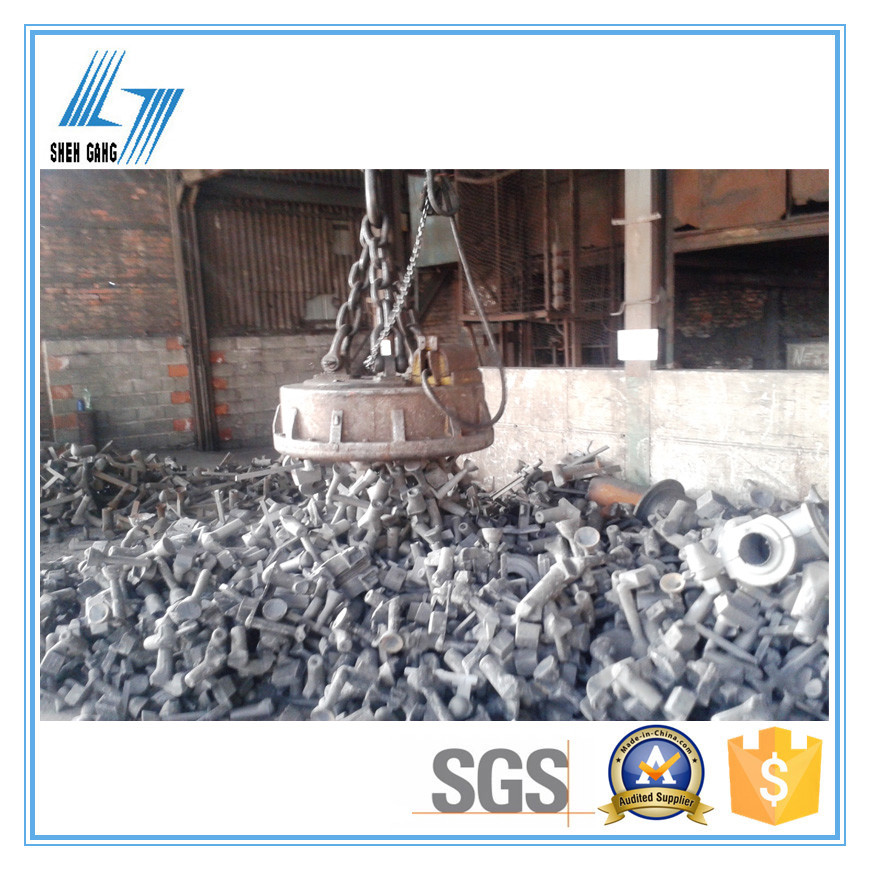

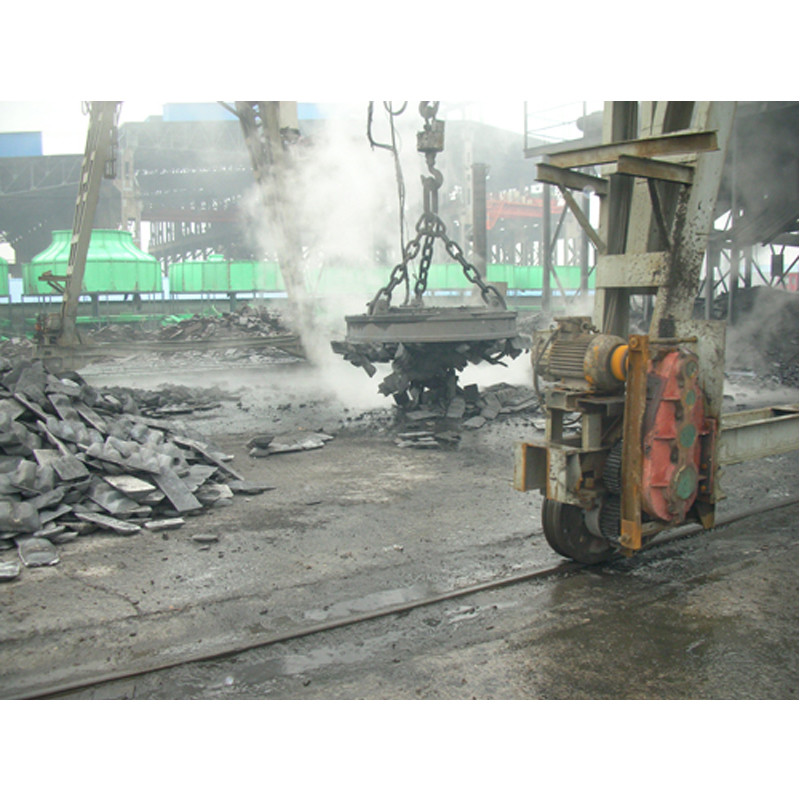

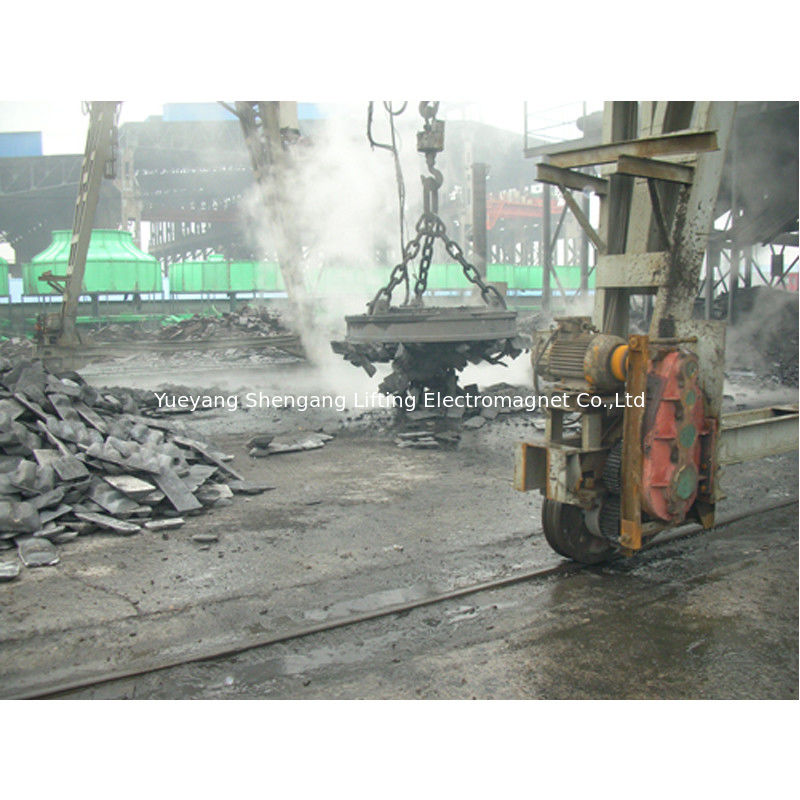

Electromagnet application:

Class H Insulation Scrap Lifting Magnet Industrial Grade  Normal Temperature Type 1

Packaging & Shipping:

Class H Insulation Scrap Lifting Magnet Industrial Grade  Normal Temperature Type 2

(fixed iron frame with five-plywoodboard packing to keep High Temperature Electromagnet with a safety and long-distance transportation and no need fumigation when clear custom )



Customers Visit and Certification:

Class H Insulation Scrap Lifting Magnet Industrial Grade  Normal Temperature Type 3
FAQ:


Q: Why customers choose us?
A: We are a professional lifting electromagnet products manufacturer with 18 years experience in China.We have our own factory which can offer better price, better control delivery time based on strict quality inspection and good after-service guarantee.

Q: Can I have product with our design and nameplate?
A: Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.

Q: How long is your delivery time?
A: Standard model is within 12 workdays after deposit confirmed.
Customized model will depend on actual production needs.

Q: What is your warranty and after service?
A: Our product is with 12months warranty from delivery. We also support
engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.


About Enquiry:
To help you get the best lifting electromagnet for your application, please kindly provide the following information:


1. What are the materials you want to lift?
Steel scraps,ingot,ball,steel billet, plate, rebas etc. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information:Voltage(V), DC/AC,Frequency(Hz), and information for overhead crane: single beam or double beam, single hook or double hook, how about its loading capacity?
5.Do you need only magnet or full set equipment with cable reel, control cabinet and cable connector?
6.Do you prefer FOB or CIF price, which is the destination port?
(More details, please feel free to contact us directly. )


Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.


Convenient Transportation:
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
