Torque Motor 50m Retractable Cable Reel

Basic Information
Place of Origin: Hunan, China (Mainland)
Brand Name: SHENGANG
Model Number: JDD90-50-4G
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: standard export package(50m torque motor cable reel)
Supply Ability: 100 Piece/Pieces per Month 50m torque motor cable reel
Features: Synchronous Operation To Coil Up And Spool Off Cables Product Name: Torque Motor 50m Retractable Cable Reel
Color: Red Current: 90A
Cable Length: 50m Weight: 960kg
Cable Model: 3*25+1*16 Type: Torque Motor Type
Phase Number: 4 Application: Motor Driven Retractable Cable Reel For Coiling Up Long Distance Cable
Port: Shanghai/Shenzhen/Guangzhou
High Light:

metal hose reel

,

self winding hose reel

50m torque motor cable reel



Product Description

Brief Introduction:



Motor-drivencable reel is designed for coiling or releasing the large specification and long distance power supply cable, which can be in synchronous operation with the mobile electrical apparatus to coil or release the cables. In view of its power patterns which is divided into torque motor driven typeand three phase asynchronous motor driven typeThere are so many motor-driven reel models available which can coil or release the power supply cablesunder 500V and high voltage cables for 6kv and 10kv

1. For different power cable, such as 3x120+1x35, 3x95+1x35 etc
2. Its driven by the electric motor
3. The cable reel is usually fixed on the mobile machine and works horizontally.
4. Additional turnover anchor will be provided if the power is feed centrally
5. Additional control cabinet is also equipped.



 Features:

  • for large specification and long distance power supply cable
  • keep in synchronous with the mobile electric apparatus

Technical Data:



Overall Dimension:

Item

A

B

C

D1

D2

d

E

F

H

I

K

W

Weight kg

1

880

800

910

1000

1600

26

1200

1800

1370

100

110

250

960

2

880

800

910

1000

1800

26

1200

1800

1370

100

110

250

980

3

880

800

910

1000

2000

26

1200

1800

1370

100

110

250

1010

4

880

800

910

1200

2500

26

1200

1800

1370

100

110

250

1080

5

880

800

1000

1000

1800

26

1300

1900

1460

100

110

250

1150

6

880

800

1000

1500

2500

26

1300

1900

1460

100

110

250

1250



Main Technical Data:



Cable Model

Current A

50m Series

Item

100m Series

Item

150m Series

Item

200m Series

Item

Continuously

1 min on; 1 min off

UG-6000

3×16+1×10

65

85

/



/



JDD65-100-4G

2

JDD65-150-4G

3

JDD65-200-4G

4

UG-6000

3×25+1×16

90

120

JDD90-50-4G

1

JDD90-100-4G

2

JDD90-150-4G

3

JDD90-200-4G

4

UG-6000

3×35+1×16

110

150

JDD110-50-4G

1

JDD110-100-4G

2

JDD110-150-4G

3

JDD110-200-4G

4

UG-10000

3×25+1×16

90

120

/



/



JDD90-100-4GG

5

/



/



JDD90-200-4GG

6



 Remark:

1. Cable is provided by customers

2. If choosing flat cables, please remark this when place the order

3. G stands for 6KV high voltage cable reel. GG stands for  10KV voltage cable reel.



Overall Dimension Drawing:



 Torque Motor 50m Retractable Cable Reel 0

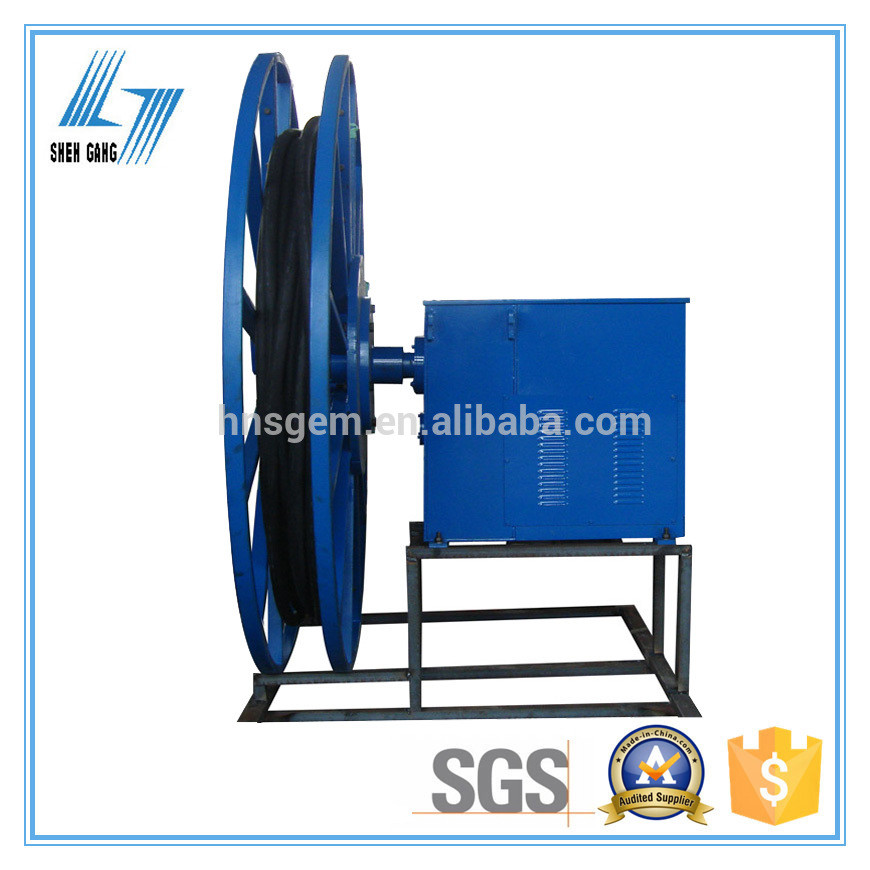

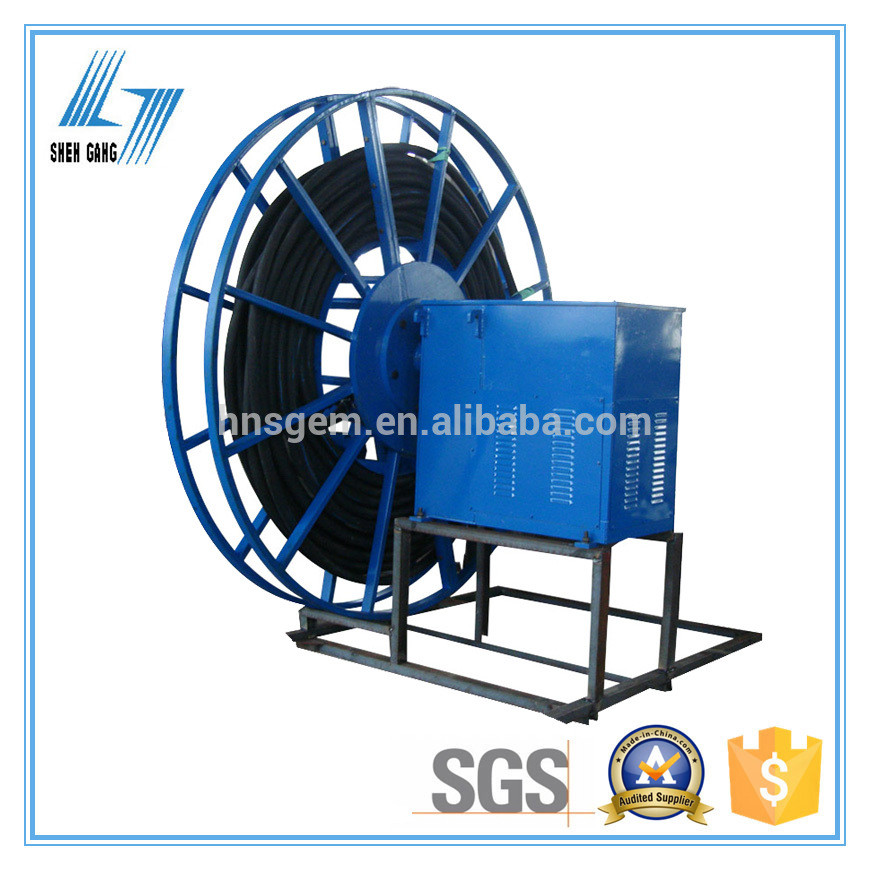

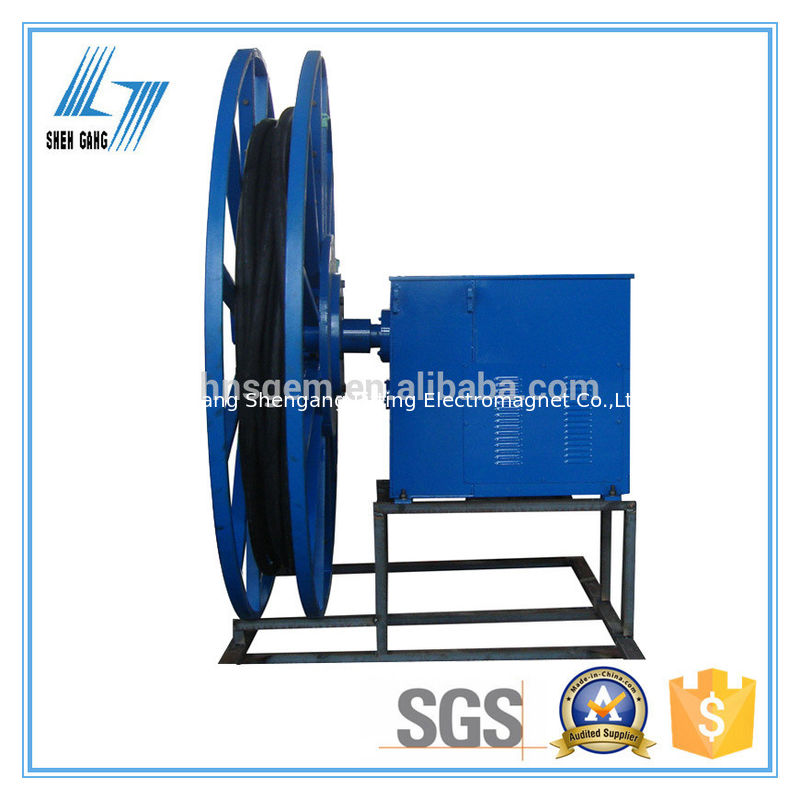

Physical Product Photo:



Torque Motor 50m Retractable Cable Reel 1



Torque Motor 50m Retractable Cable Reel 2



Torque Motor 50m Retractable Cable Reel 3



FAQ

 In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :

1.Do you have special requirement about the power types?

spring type / motor powered/hysteresis?



2.What is the cable specification?

cable core number * cross section, coil length of cable, electric current, work voltage?



3. What kind of working site will the cable reel be applied with?



4. What kind of installation patterns you prefer?

Vertical coiling or Horizontal coiling?



5. To use flat cable or round cable?



For our relate products you may interested in, kindly click for details:



1. JTA Series Spring Driven Cable Reel



2. JT Series Hose Reel



3. Motor Type Cable Reel



4. Hyster Type Cable Reel



5. Motorized Couple Type Cable Reel



6. Magnetic Coupling Type Cable Reel



7.Manual Discharging Type Circular Electromagnetic Separator



8. Lifting Electromagnet for Billet Lifting



9. Lifting Electromagnet for Sheet Plate



*Lifting Magnet Series:

--application for transporating steel scraps, steel plates, billets,etc.

Torque Motor 50m Retractable Cable Reel 4

*Cable Reel Series:

--application for supply power to mobile electrical apparatus such as lifting magnet, all kinds of crane,ect..

Torque Motor 50m Retractable Cable Reel 6
